UNI-T UAP500A Programmable AC Power Source 500VA

Features:

• Programmable AC Output: Generates adjustable AC voltage and frequency for controlled testing of electrical and electronic equipment.

• 500VA Output Capacity: Provides a 500VA apparent-power rating for laboratory testing, product development, and quality inspection.

• Wide Voltage Adjustment: Supports selectable low- and high-voltage ranges, with output adjustable from 0–150VAC or 0–300VAC.

• Adjustable Frequency: Offers an output frequency range of 45–250Hz for testing equipment under different AC supply conditions.

• Low-Distortion Waveform: Uses sinusoidal pulse-width modulation (SPWM) to generate a low-distortion AC waveform.

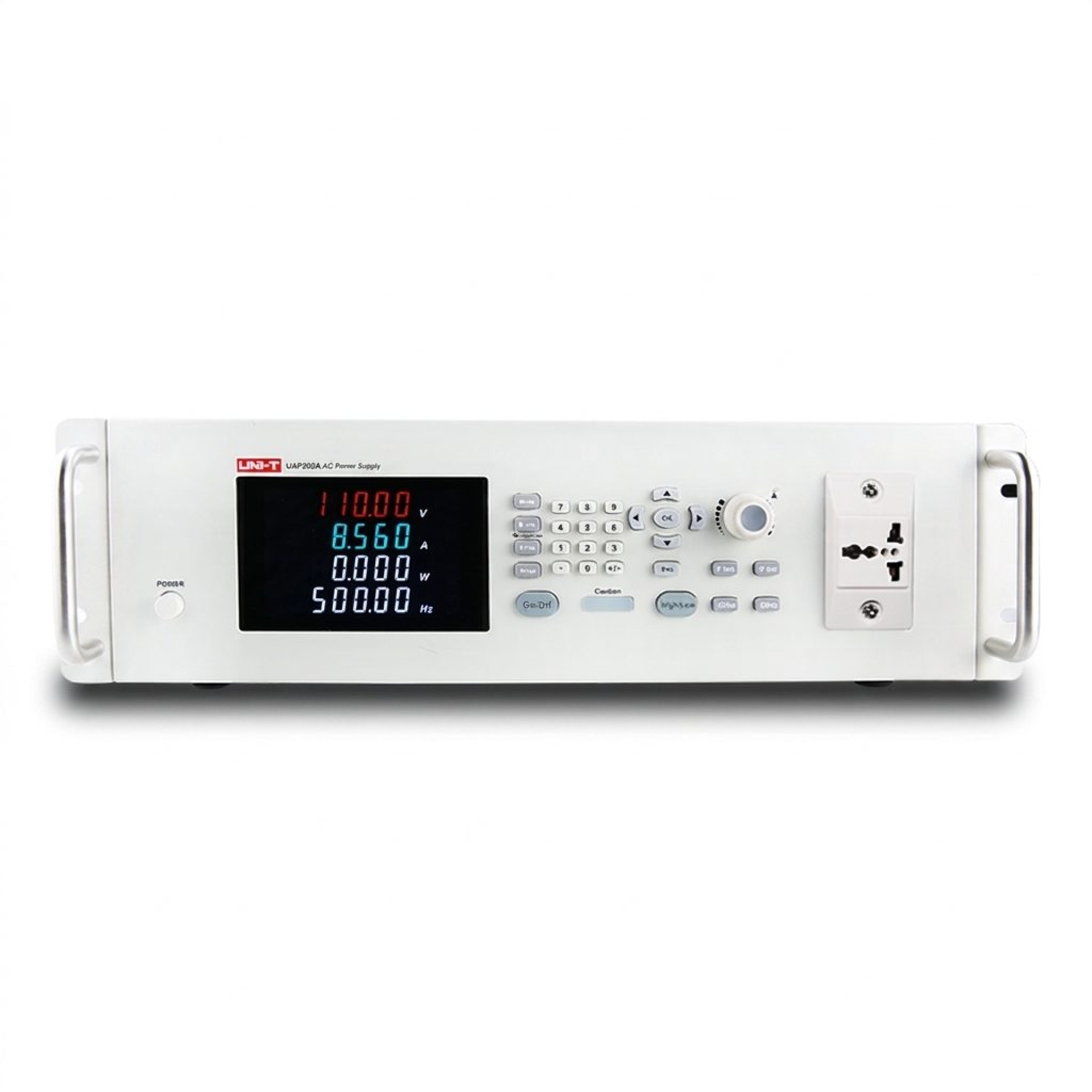

• Four-Window Display: Displays key measurement parameters simultaneously, including RMS voltage, RMS current, frequency, power, and power factor.

• Preset Memory: Stores up to nine groups of settings for faster setup during repeated tests.

• Remote Control: Supports computer-based operation through the RS-232C interface, with SCPI and Modbus protocol support.

• Output Delay Function: Allows the output voltage to rise gradually toward the set value, helping protect equipment sensitive to sudden voltage changes.

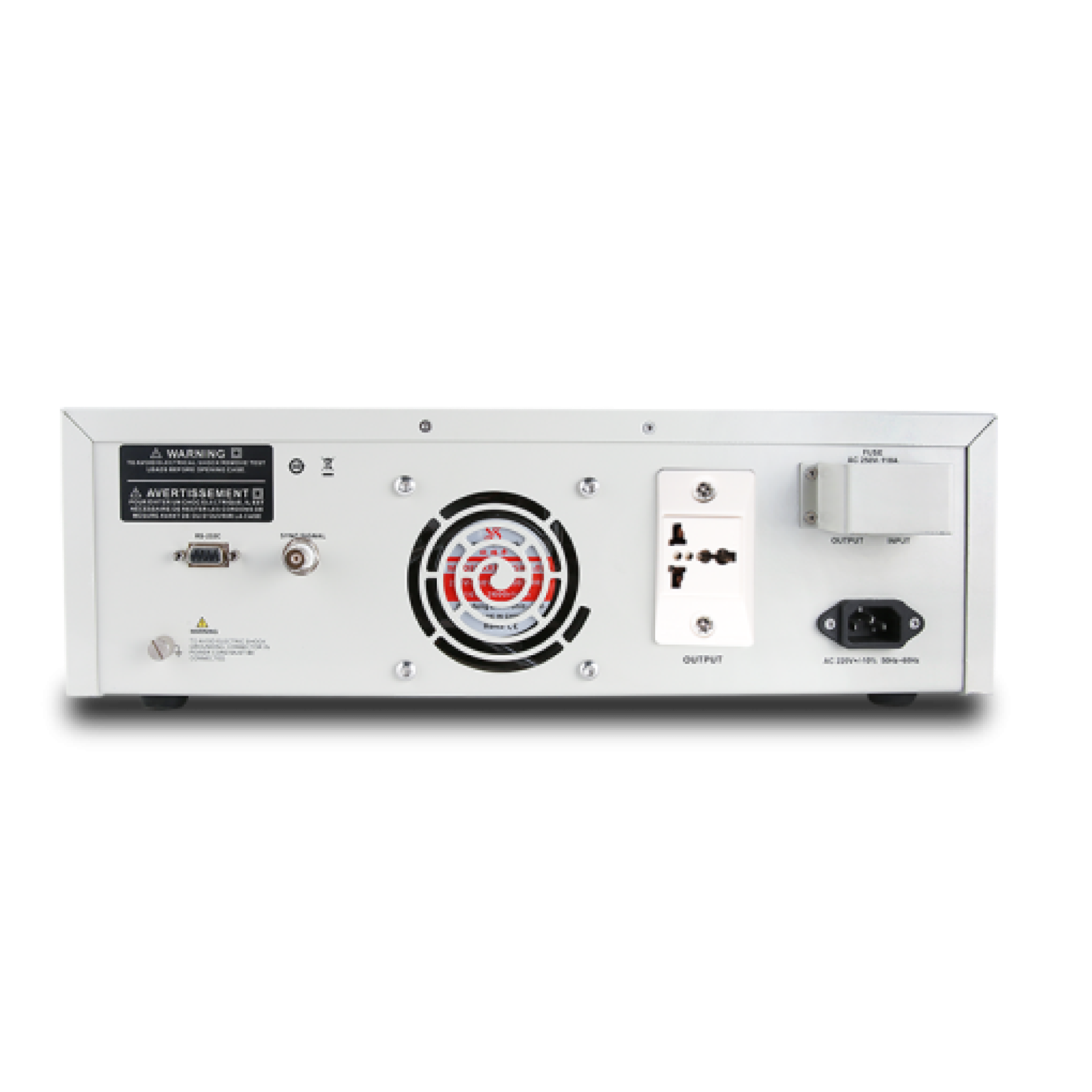

• Dual Output Connections: Provides front- and rear-panel output connections for flexible bench or rack installation.

• Built-In Protection: Includes overcurrent, overtemperature, overload, and short-circuit protection.

Specifications:

• Brand: UNI-T

• Model: UAP500A

• Product Type: Programmable AC Power Source

• Output Capacity: 500VA

• Output Configuration: Single-phase, two-wire

• AC Output Voltage: 0–150VAC / 0–300VAC, selectable ranges

• Maximum Output Current: 4.2A in the low-voltage range; 2.1A in the high-voltage range

• Output Frequency: 45–250Hz

• Voltage Setting Resolution: 0.01V

• Frequency Setting Resolution: 0.01Hz

• Current Display Resolution: 0.001A

• Waveform Generation: SPWM

• Load Stability: 0.1%, according to the manufacturer's catalog

• Total Harmonic Distortion: Approximately 0.3% under specified resistive-load conditions

• Frequency Stability: 0.01%

• Measurement Accuracy: Voltage, current, and power ±(0.5% FS + 5 digits); frequency ±(0.01% FS + 5 digits)

• Setting Accuracy: Voltage ±1% FS; frequency ±0.1% FS

• Display Parameters: RMS voltage, RMS current, frequency, power, and power factor

• Preset Memory: 9 groups

• Communication Interface: RS-232C

• Remote-Control Protocols: SCPI and Modbus

• Input Power: 220VAC ±10%, 47–63Hz

• Form Factor: 3U rack-style instrument

• Dimensions: 430 × 132 × 483mm

• Net Weight: Approximately 17.5kg

• Standard Accessories: Power cord and RS-232 interface cable; confirm the supplied package contents with the seller

Applications:

• Electronics research and development

• AC power supply testing and evaluation

• Household appliance testing

• Motor and lighting equipment testing

• Electrical product quality inspection

• Power supply performance verification

• Testing equipment at different AC frequencies

• Automated electrical testing systems

• Laboratory measurement and engineering education

• Product validation and troubleshooting
