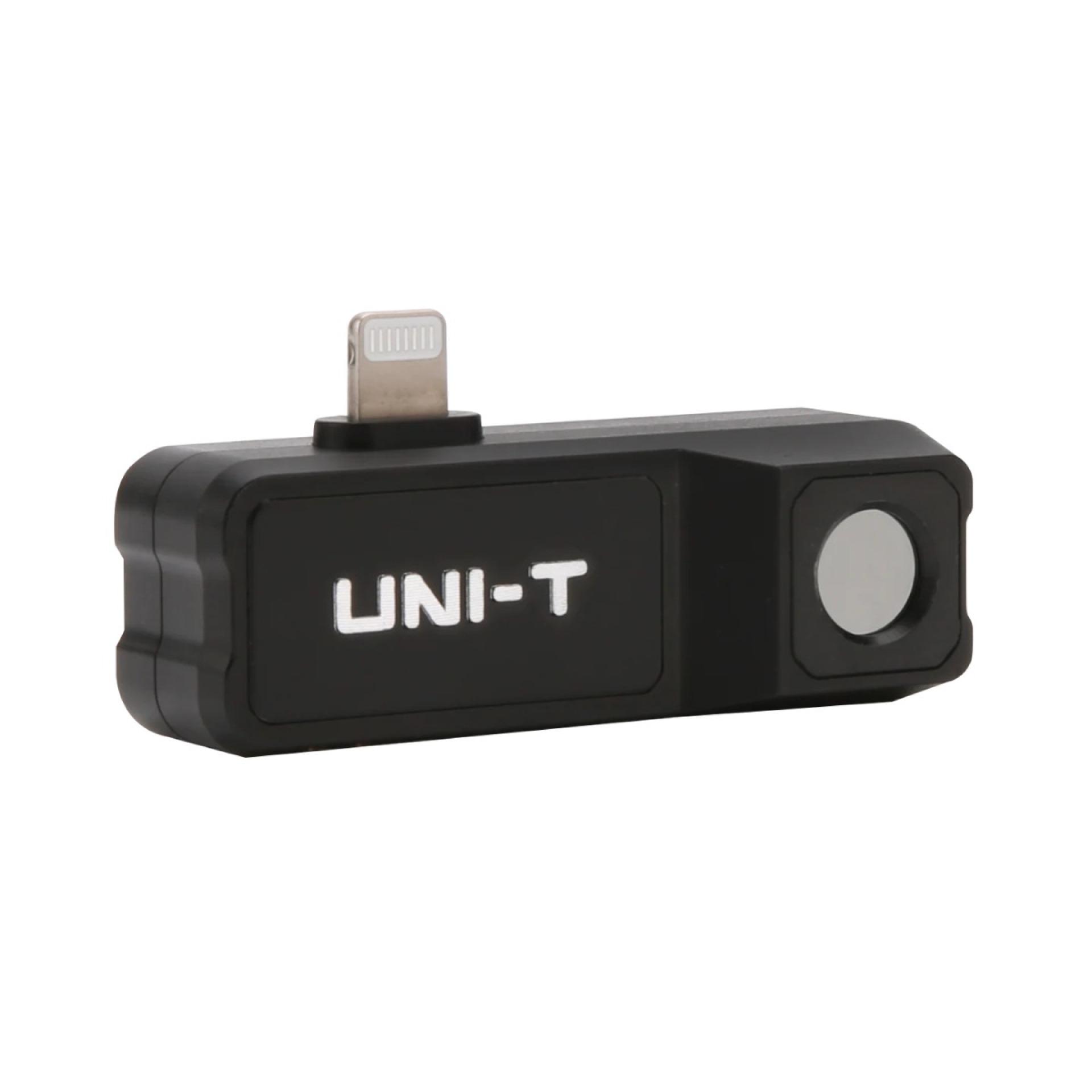

UNI-T UTi120MS Smartphone Thermal Camera Module for IPhone

The UNI-T UTi120MS Smartphone Thermal Camera Module for iPhone is a compact infrared thermal imaging accessory that transforms a compatible iPhone into a portable thermal inspection tool. Designed for electrical, electronics, mechanical, automotive, HVAC, and general maintenance applications, the UTi120MS allows technicians and engineers to visualize temperature differences that cannot be identified easily with a conventional camera.

The module uses a 120 × 90 pixel infrared detector with a 50° × 38° field of view and a thermal sensitivity of ≤60mK at 25°C. This combination allows the camera to detect relatively small temperature variations across a scene and display them as a thermal image. The device operates across the 8–14μm infrared spectral range and uses a 2.28mm focal-length, focus-free lens, eliminating the need for manual focusing during routine inspections. 

The UTi120MS provides a wide temperature measurement range from -20°C to 400°C (-4°F to 752°F). Its specified accuracy is ±2°C or ±2%, whichever is greater, under the specified measurement conditions. Users can also adjust the emissivity setting from 0.01 to 1.00, which is useful when measuring different surface materials and improves the suitability of the instrument for practical inspection work. 

The thermal camera supports several image presentation modes, including Thermal, Fusion, and Picture-in-Picture (PIP). Fusion combines thermal information with the smartphone's visible-light camera image, while PIP provides an additional way to compare thermal and visible information. Seven color palettes—including White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, and Rainbow HC—are available to help users distinguish temperature patterns according to the inspection being performed. 

For detailed analysis, the UTi120MS provides an on-screen analyzer supporting up to 6 points, 6 lines, 6 rectangles, and 6 circles. It can also track high and low temperature areas and provide configurable high/low temperature alarms. Photo capture and video recording allow inspection results to be documented and shared directly through the connected smartphone. 

With a compact 25g body and smartphone-based operation, the UTi120MS is convenient for technicians who need a lightweight thermal imaging solution without carrying a dedicated handheld thermal camera. The module connects to compatible iPhones through its Lightning interface according to the product datasheet, making it particularly suitable for mobile troubleshooting, preventive maintenance, PCB inspection, electrical diagnostics, and locating abnormal heat sources. 

Features

• 120 × 90 IR thermal resolution

• Temperature measurement from -20°C to 400°C

• Thermal sensitivity of ≤60mK @ 25°C

• 50° × 38° FOV

• Focus-free infrared lens

• ≤25Hz frame rate

• Adjustable emissivity from 0.01 to 1.00

• Thermal, Fusion, and PIP image modes

• 7 selectable thermal color palettes

• High/low temperature tracking and alarm

• On-screen analysis with points, lines, rectangles, and circles

• Photo capture and video recording

• Compact 25g design

• Designed for compatible iPhone devices 

Specifications

• Brand: UNI-T

• Model: UTi120MS

• Product Type: Smartphone Thermal Camera Module

• Compatible Platform: iPhone / iOS

• IR Resolution: 120 × 90 pixels

• Super Resolution: 240 × 180 pixels, controllable

• Field of View (FOV): 50° × 38°

• Spatial Resolution (IFOV): 7.3mrad

• Thermal Sensitivity (NETD): ≤60mK @ 25°C

• Frame Rate: ≤25Hz

• Spectral Range: 8–14μm

• Pixel Size: 17μm

• Lens Focal Length: 2.28mm

• Focus: Focus-free

• Temperature Range: -20°C to 400°C

• Accuracy: ±2°C or ±2%, whichever is greater

• Temperature Resolution: 0.1°C

• Emissivity: 0.01–1.00 adjustable

• Image Modes: Thermal / Fusion / PIP

• Color Palettes: 7

• Analysis: Up to 6 points, 6 lines, 6 rectangles, 6 circles

• Storage Formats: JPEG / MP4

• Interface: Lightning

• Drop Protection: 1m

• Weight: Approximately 25g

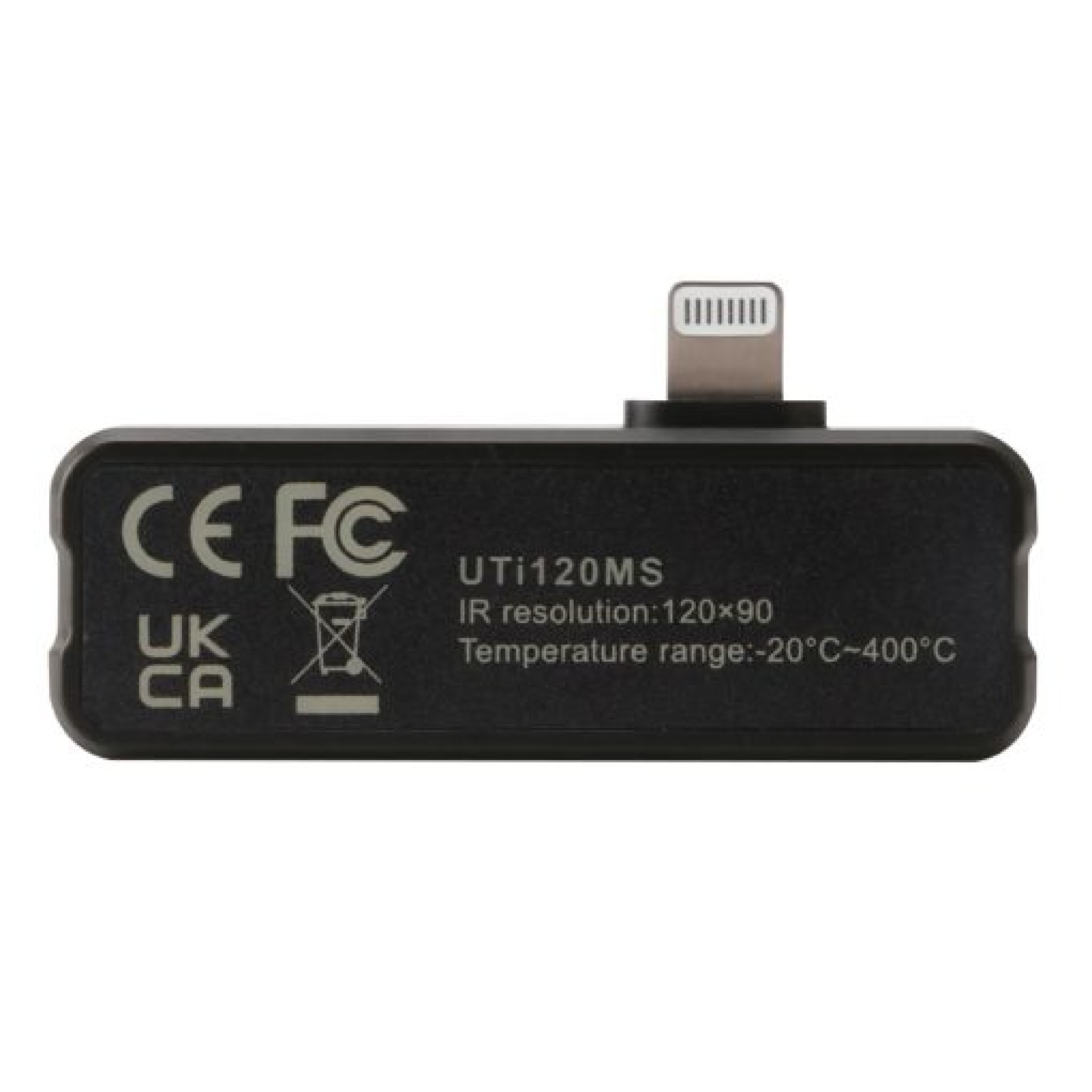

• Certifications: CE, UKCA, FCC, RoHS 

Applications

• Electrical panel and wiring inspection

• PCB and electronics troubleshooting

• Detection of overheated electronic components

• Power supply and circuit inspection

• Motor and bearing temperature inspection

• HVAC and refrigeration diagnostics

• Automotive thermal inspection

• Mechanical equipment maintenance

• Industrial preventive maintenance

• Finding abnormal hot spots

• Identifying heat loss and temperature distribution

• Moisture and building inspection

• Field service and technical diagnostics 
