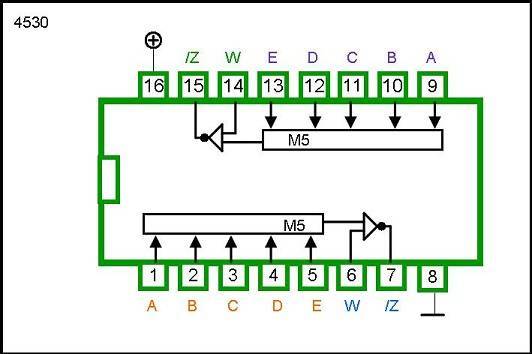

4530 DIP DUAL 5-INPUT MAJORITY LOGICAL GATE

4530 DIP Dual 5-Input Majority Logical Gate

The 5-input majority logical gate is a key component for digital logic circuits. This 4530 DIP dual 5-input majority logical gate from Electra Store offers reliable performance. It is ideal for engineers and hobbyists. Use it in projects that need majority voting or logic decision making.

This gate outputs a high signal when three or more inputs are high. It works with standard CMOS logic levels. The DIP package makes it easy to use on breadboards and PCBs. It is a versatile part for many electronic designs.

This 5-input majority logical gate performs a critical logic function. It takes five input signals and checks them. The output goes high only when a majority of inputs are high. This mimics a voting system. It is useful for fault-tolerant designs. You can combine two gates in one chip. This saves space and cost. The CMOS design ensures low power use. It also resists electrical noise well. The wide voltage range adds flexibility. You can use it with 3V or 15V systems. This makes it compatible with many circuits. The 16-pin DIP package fits standard sockets. It is easy to insert and remove. This helps during testing and prototyping. The gate operates at high speed. It works well in fast digital systems. Electra Store tests each part for quality. You get a reliable component every time.

Key Features

• Dual 5-input majority logic function in one DIP package
• CMOS technology for low power consumption and high noise immunity
• Wide operating voltage range from 3V to 15V
• Standard 16-pin DIP package for easy prototyping
• High-speed operation suitable for digital systems
• Reliable from Electra Store with quality assurance

Use Cases

This 5-input majority logical gate is perfect for digital voting machines. It is also used in error detection circuits and control systems. Hobbyists can build simple logic projects. Engineers can integrate it into complex designs. It is a must-have for any logic lab.

Typical buyers include electronics students and teachers. They use it in classroom labs. Robotics enthusiasts buy it for decision-making circuits. Industrial designers use it for safety systems. It helps in systems that need redundancy. For example, a three-sensor system can use it. The gate checks if most sensors agree. This prevents false alarms. It is also great for data validation. You can check multiple data streams. The gate outputs a clean majority result. This simplifies your design. Beginners find it easy to understand. Experts appreciate its reliability. It works in many projects. From simple toys to advanced controllers. This 5-input majority logical gate fits all needs.

Buy the 4530 DIP dual 5-input majority logical gate today. It is in stock and ready to ship. Add it to your cart now. Get reliable performance for your next project. Order now and start building. Your circuit needs this key part. Do not wait. Click add to cart. We ship fast. You will have it soon. Build with confidence using Electra Store parts.
