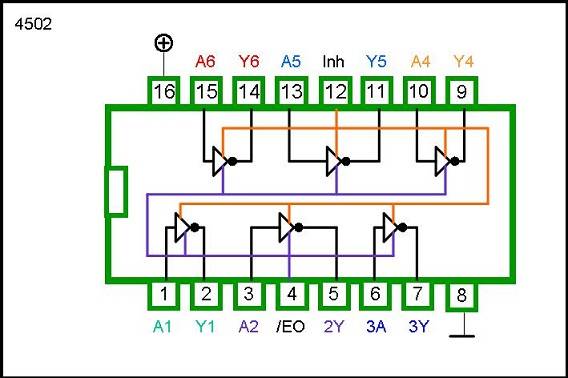

4502 DIP HEX INVERTING BUFFER (TRISTATE)

4502 DIP HEX INVERTING BUFFER (TRISTATE)

The 4502 HEX Inverting Buffer (Tristate) is a CMOS logic IC. It comes in a DIP-16 package. This chip has six inverting buffers. Each buffer has a tristate output. It is perfect for digital projects. Hobbyists and engineers love it. It works with 3V to 15V systems. Use it in microcontrollers or logic circuits.

This buffer inverts the input signal. The tristate output allows high impedance. This lets multiple devices share a bus. It prevents signal conflicts. The 4502 is reliable and low power. It is a standard 45 Series part. Electra Store offers it with fast shipping.

What the HEX Inverting Buffer Does

The HEX Inverting Buffer takes a logic high input and outputs a low. It takes a low input and outputs a high. This inversion is key for many circuits. The tristate feature adds a third state. This state is high impedance. It disconnects the output from the bus. This allows other devices to drive the line. The 4502 HEX Inverting Buffer handles this smoothly. It works with CMOS and TTL logic levels. You can use it to buffer signals. It cleans up noisy inputs. The chip is very robust. It can drive multiple loads. This makes it a versatile part for any design.

Key Features

• Six inverting buffers with tristate outputs in one DIP-16 package.
• Wide supply voltage range from 3V to 15V for flexible use.
• Low power consumption typical of CMOS technology.
• High noise immunity for stable operation in noisy environments.
• Standard 45 Series pinout compatible with breadboards and sockets.
• RoHS compliant and lead-free for safe handling.

Use Cases

The 4502 HEX Inverting Buffer is great for bus systems. Use it in data lines or address decoding. It works in Arduino or Raspberry Pi projects. Repair vintage electronics or build new circuits. It is a must-have for any logic lab. Typical buyers include students and teachers. They use it in classroom labs. Hobbyists buy it for home projects. Engineers stock it for prototypes. It is also popular in industrial control. The 4502 HEX Inverting Buffer helps with signal conditioning. It is ideal for level shifting. You can use it to drive LEDs or relays. It works well with sensors. The tristate output is perfect for shared buses. This chip is a core part of many designs.

Order the 4502 HEX Inverting Buffer from Electra Store today. Get fast shipping and a 5-year warranty. This tristate buffer will boost your project. Click add to cart now. Do not wait. Start building with the 4502 HEX Inverting Buffer. It is a reliable choice for your next circuit. Electra Store has it in stock. Order now and get it fast.
