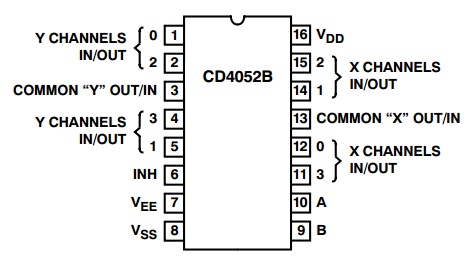

4052 DIP Analogue Multiplexer / Demultiplexer (Dual 1-Of-4 Switch)

4052 DIP Analogue Multiplexer / Demultiplexer (Dual 1-Of-4 Switch)

The 4052 DIP Analogue Multiplexer is a versatile IC for signal routing. It features two independent 1-of-4 switches. This makes it ideal for audio and analog applications. Engineers and hobbyists alike will appreciate its reliability.

This analogue multiplexer works with both analog and digital signals. It can handle voltages up to 15V. The dual switch design allows for complex routing tasks. It is a key component in many 40 Series logic circuits.

This Analogue Multiplexer selects one of four input channels. It routes that signal to a single output. The dual switch means you get two such circuits in one chip. You can use them separately or together. This flexibility saves space on your board. It also reduces component count. The device works as a demultiplexer too. That means it can split one signal into four outputs. This dual function is very useful. It simplifies many design challenges. The 4052 is a reliable choice for signal management. It handles both AC and DC signals well. You can use it in many different projects. The low power consumption is a bonus. It keeps your system efficient.

Key Features

• Dual 1-of-4 switch configuration for flexible signal routing
• Wide operating voltage range from 3V to 15V
• Low ON resistance for minimal signal loss
• Compatible with TTL and CMOS logic levels
• Standard DIP package for easy breadboarding
• High reliability from a trusted 40 Series IC

Use Cases

This analogue multiplexer is perfect for audio mixers, data acquisition systems, and test equipment. It is also great for educational projects. Buyers often use it in analog switch arrays and signal selectors. Typical buyers include electronics engineers. They work on audio gear or measurement tools. Hobbyists also love this chip. It is great for DIY synthesizers. Students use it in lab experiments. It helps them learn about signal routing. The 4052 is also common in industrial control. It selects sensor inputs for monitoring. Anyone needing clean signal switching will benefit. The dual switch design is a big plus. It handles stereo audio or dual sensor inputs. This makes the Analogue Multiplexer a versatile choice.

Order your 4052 DIP Analogue Multiplexer today. It is in stock and ready to ship. Upgrade your project with this essential IC. Fast delivery from Electra Store. This Analogue Multiplexer will boost your design. It offers reliable performance every time. Do not wait to get started. Add it to your cart now. You will love the results. Order today for quick shipping. Your next project needs this chip. Get the 4052 Analogue Multiplexer now.
