4027 DIP Dual Jk Flip-Flop

4027 DIP Dual JK Flip-Flop

The 4027 DIP Dual JK Flip-Flop is a versatile CMOS logic IC from the 40 Series. It contains two independent JK flip-flops in a single DIP-16 package. This chip is ideal for hobbyists and engineers building counters, registers, or sequential circuits.

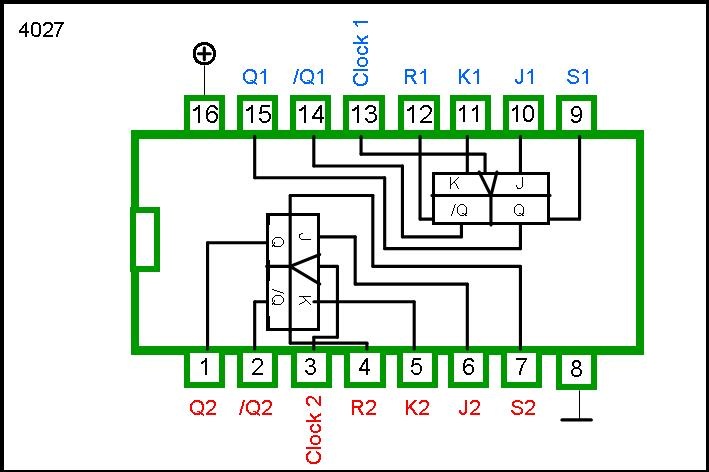

Each flip-flop has J, K, clock, set, and reset inputs. It operates on a wide voltage range from 3V to 15V. This makes it compatible with many digital projects. The Dual JK Flip-Flop offers reliable performance for your designs.

This Dual JK Flip-Flop can store one bit of data per flip-flop. The J and K inputs control the output state. A clock pulse triggers the change. The set and reset pins force the output high or low. You can use it for toggle, set, reset, or no change modes. It works well in synchronous and asynchronous circuits. The CMOS design uses very little power. It also handles slow clock edges without issues. This makes it great for battery-powered devices. The wide voltage range means you can use it with 5V or 12V systems. The buffered outputs drive other logic gates easily. You can cascade multiple chips for larger counters. The 4027 is a standard part in many digital labs. It is easy to find and replace. This Dual JK Flip-Flop is a building block for complex logic.

Key Features

• Two independent JK flip-flops in one DIP-16 package
• Wide supply voltage range: 3V to 15V for flexible use
• Buffered inputs and outputs for stable operation
• Low power consumption typical of CMOS technology
• Standard 40 Series pinout for easy integration
• High noise immunity ensures reliable performance

What's Included

• One 4027 DIP Dual JK Flip-Flop IC
• Anti-static foam packaging for safe shipping
• Datasheet link available on request
• Lifetime technical support from Electra Store

Use Cases

Use the 4027 DIP Dual JK Flip-Flop in frequency dividers, shift registers, or state machines. It is perfect for educational kits, prototyping, and repair of vintage electronics. Hobbyists and students will find it easy to work with.

Typical buyers include electronics students learning digital logic. They use it in lab experiments and class projects. Engineers use it for quick prototypes on breadboards. Repair technicians use it to fix old computers or synthesizers. Makers build LED chasers and binary clocks with it. The Dual JK Flip-Flop is also popular in robotics for state control. It suits anyone who needs reliable flip-flop logic. The 40 Series family is well-known and documented. You can find many tutorials online. This chip is a great choice for beginners and experts alike.

Order the Dual JK Flip-Flop from Electra Store today. Get fast shipping and quality components for your next project. Build reliable circuits with this essential 40 Series IC. Stock up now for your digital designs. We offer bulk discounts for educators and labs. Every chip is tested before shipping. Your satisfaction is guaranteed. Click add to cart and start building today.
