4043 DIP Quad NOR R / S Latch

4043 DIP Quad NOR R/S Latch

The 4043 DIP Quad NOR R/S Latch is a versatile integrated circuit. It contains four independent R/S latches. Each latch uses NOR gates. This IC is ideal for digital logic projects. It works well in memory and control circuits. Hobbyists and engineers love its reliability.

This latch stores one bit of data per section. It responds to Set and Reset inputs. The outputs are complementary. You can use it for flip-flops or debouncing switches. Its DIP package makes breadboarding easy. The 4043 DIP Quad NOR R/S Latch operates from 3V to 15V.

The 4043 DIP Quad NOR R/S Latch offers precise control. Each latch holds its state until changed. This makes it perfect for temporary storage. You can cascade multiple latches for larger systems. The NOR gate design ensures stable operation. It rejects noise better than many alternatives. This IC is a staple in digital design. It simplifies complex logic tasks. The 4043 DIP Quad NOR R/S Latch is easy to use. It works with standard CMOS logic levels. You can pair it with other 4000 series chips. This expands your project possibilities. The low power draw is a major benefit. It runs cool even in dense circuits. The 4043 DIP Quad NOR R/S Latch is built to last. Electra Store tests every unit for quality. You get consistent performance every time.

Key Features

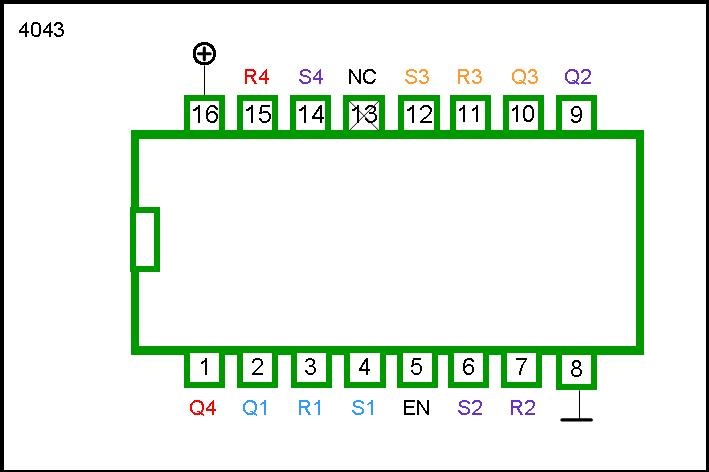

• Four independent NOR R/S latches in one DIP-16 package
• Wide supply voltage range from 3V to 15V
• High noise immunity typical of 4000 series CMOS
• Standard DIP footprint for easy prototyping
• Low power consumption ideal for battery devices
• Buffered outputs drive standard logic loads

Use Cases

Build memory registers or control panels with this latch. It is great for educational kits and industrial controls. Use it in alarm systems or simple state machines. The 4043 DIP Quad NOR R/S Latch also works in data storage circuits. Typical buyers include hobbyists and students. Engineers use it for prototyping new designs. It is perfect for robotics and automation projects. You can build debounce circuits for switches. It works well in timing and sequencing applications. The 4043 DIP Quad NOR R/S Latch is also used in test equipment. Repair technicians rely on it for replacements. It fits into many existing circuit designs. This IC is a must-have for any digital workbench. It solves common logic problems with ease.

Order the 4043 DIP Quad NOR R/S Latch today. Electra Store offers fast shipping and great support. Upgrade your project with this reliable IC now. You will love the performance and value. Don't wait to start building. Get your 4043 DIP Quad NOR R/S Latch from Electra Store today. We are ready to help you succeed.
