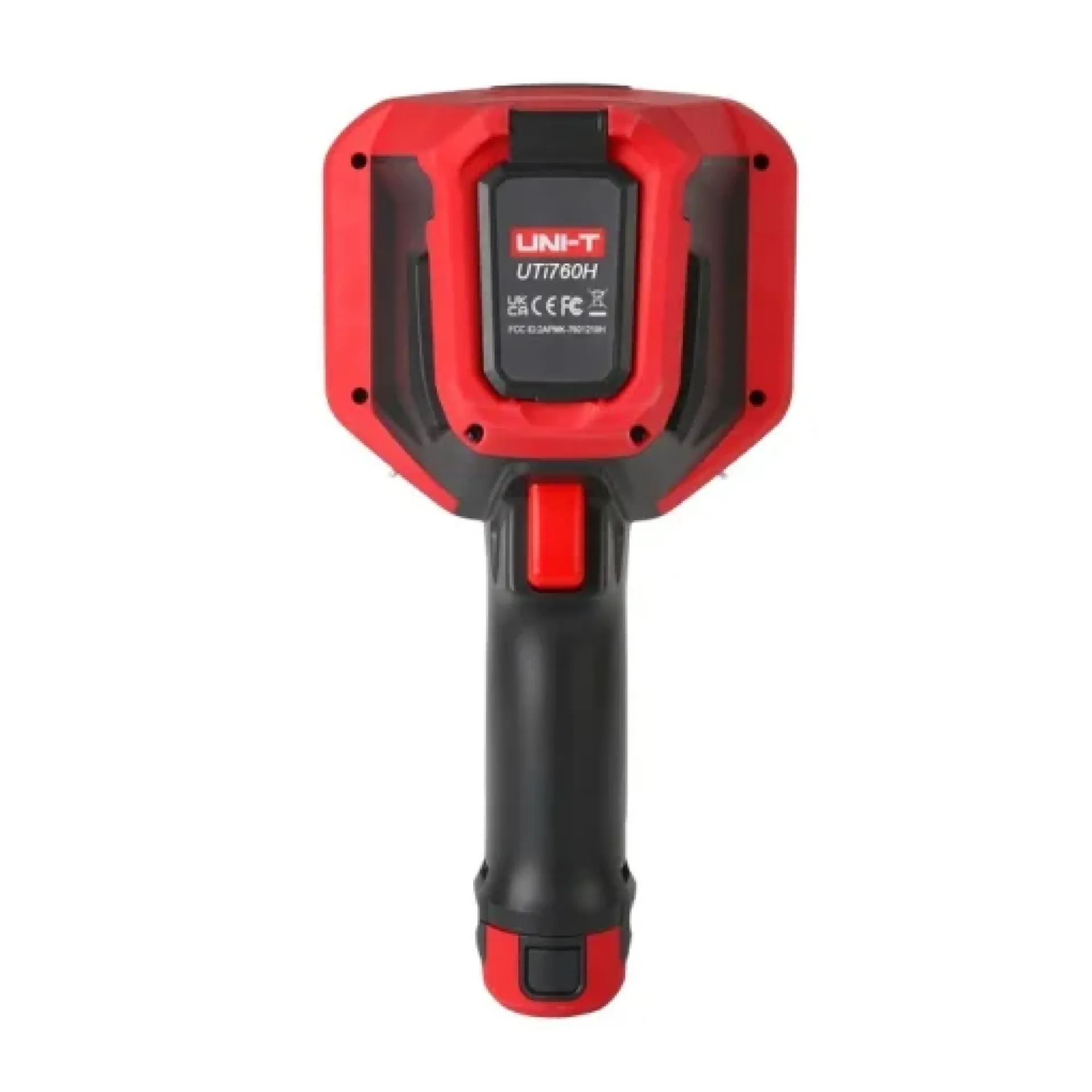

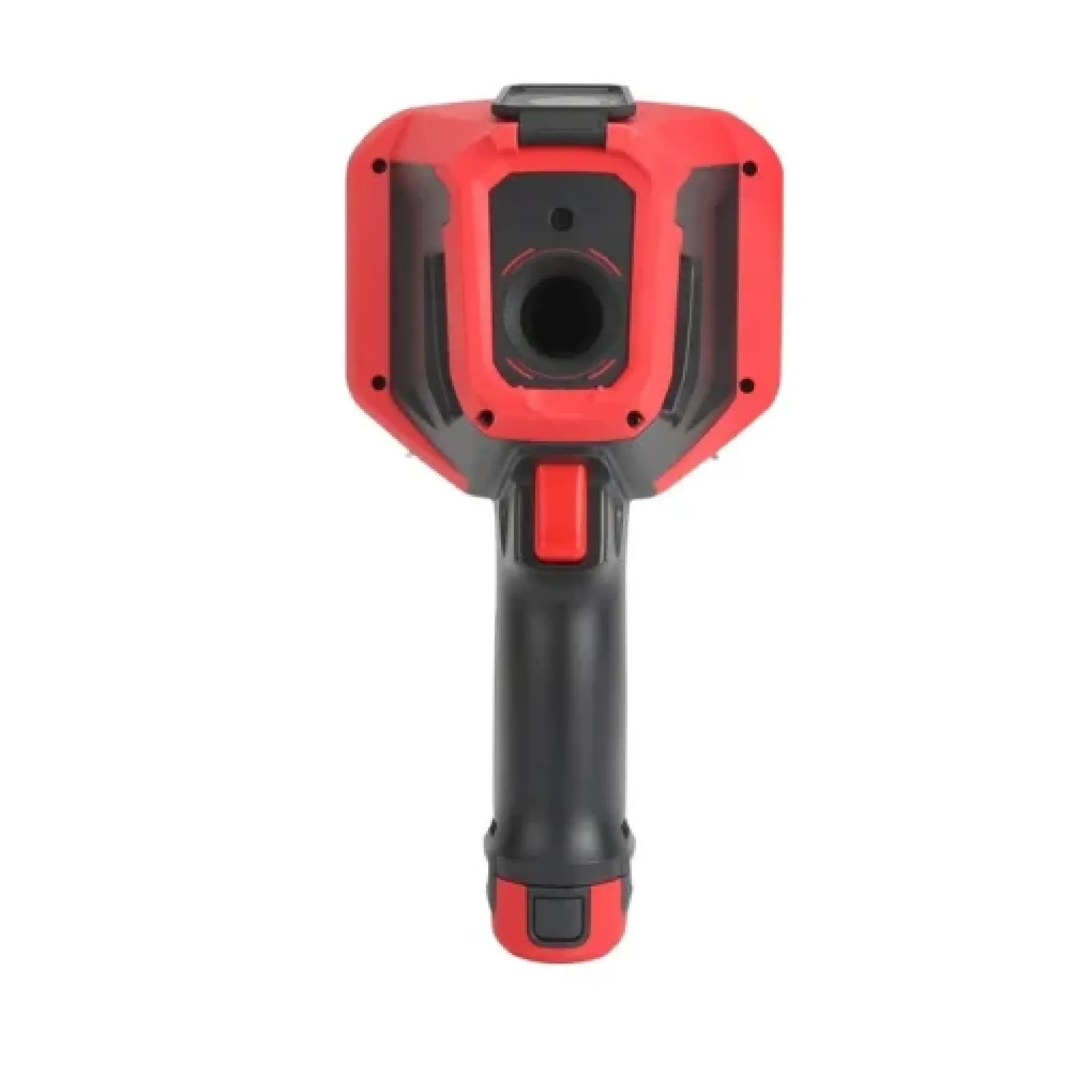

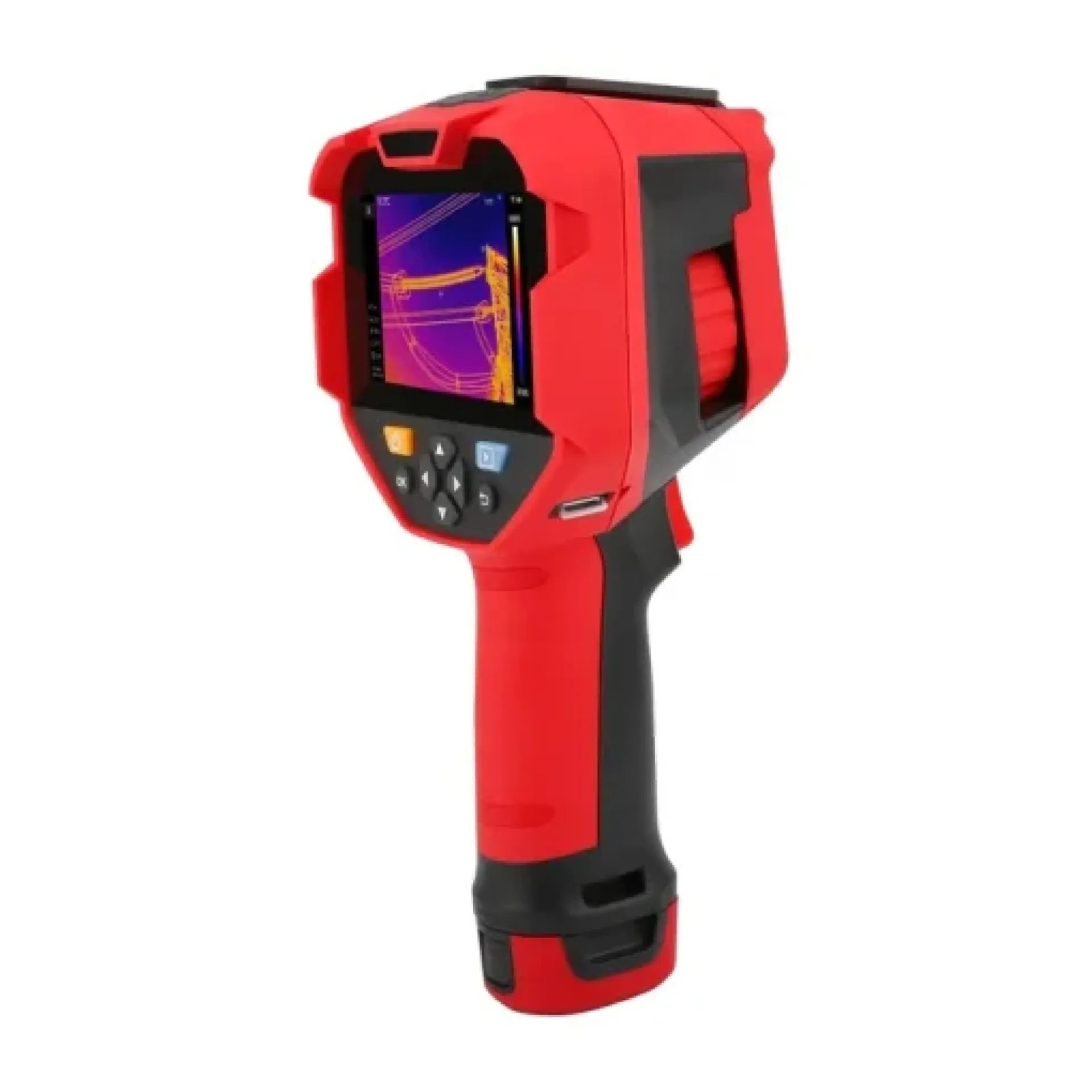

UNI-T UTi760H Professional Enhanced Thermal Imager

The UNI-T UTi760H Professional Enhanced Thermal Imager is a high-resolution infrared camera designed for professional thermal inspection, electrical diagnostics, industrial maintenance, and building assessment. Its 640 × 480 infrared detector captures detailed thermal images, helping users identify abnormal temperature patterns and potential faults before they lead to equipment failure.

With thermal sensitivity below 35mK and a temperature measurement range of -20°C to 650°C, the UTi760H can detect subtle temperature differences across electrical components, mechanical equipment, HVAC systems, and building surfaces. Its manual-focus lens helps produce sharper thermal images when inspecting targets at different distances.

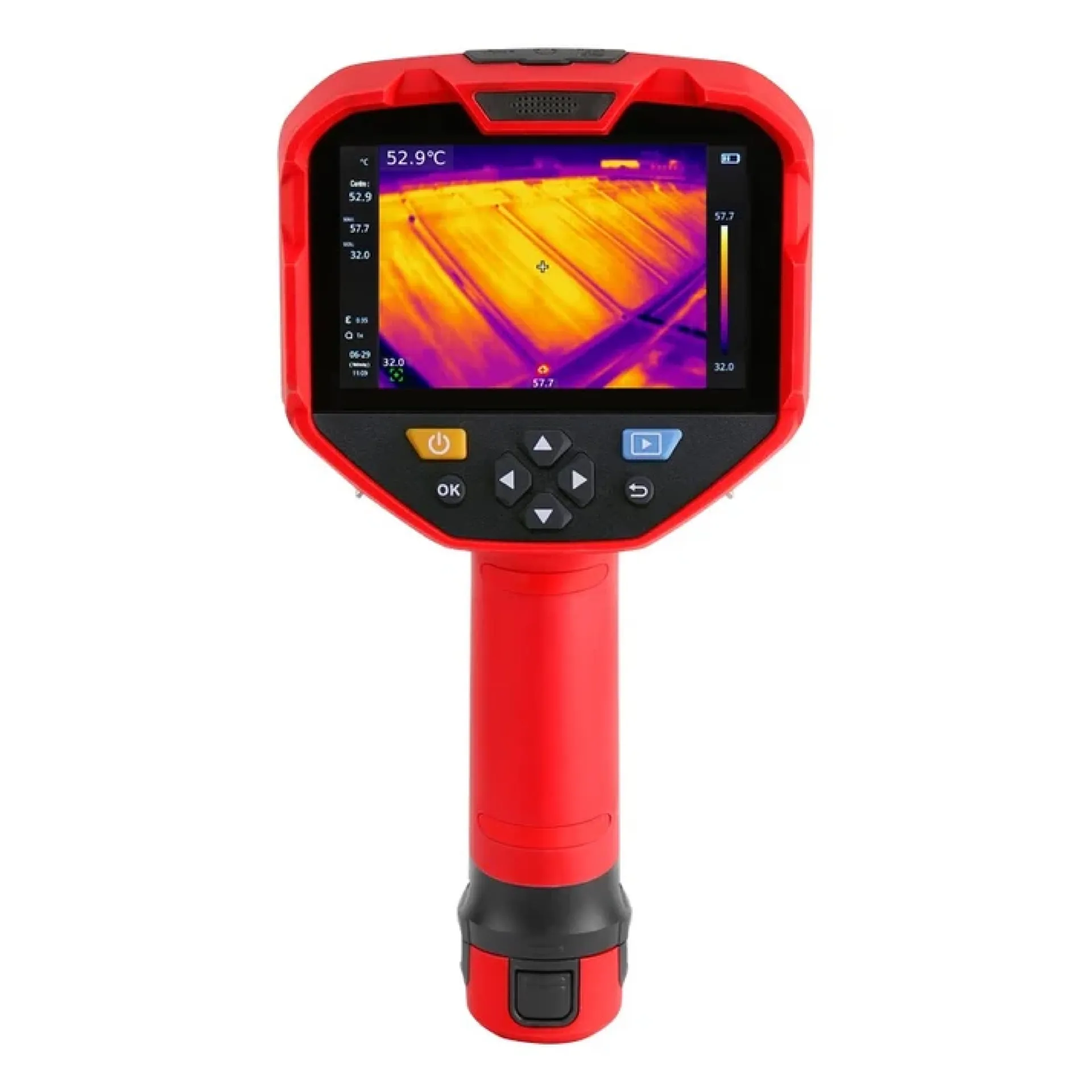

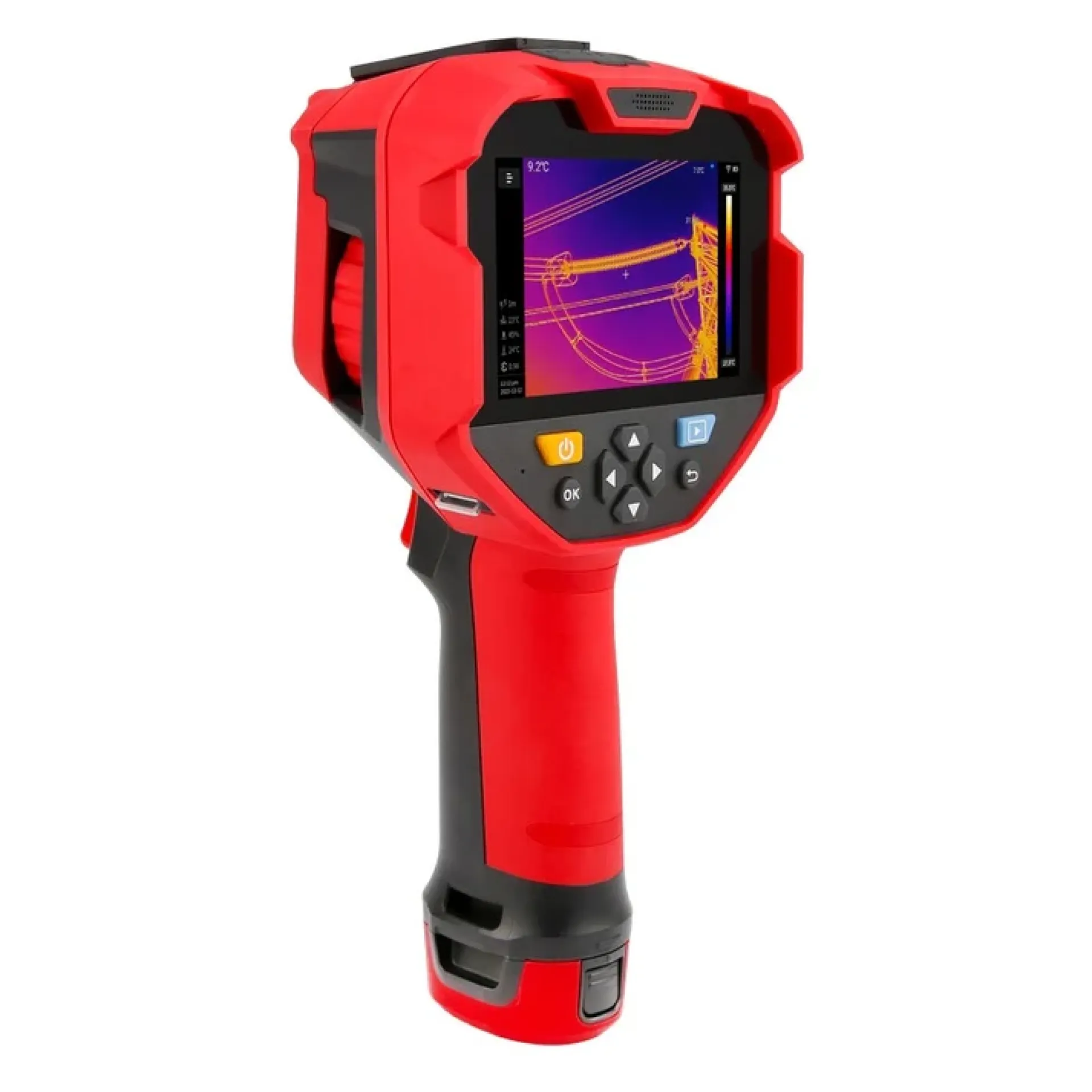

The camera features a 4.3-inch capacitive touchscreen, a 5MP visible-light camera, and T-Mix image fusion, which combines thermal and visual information for easier identification of the inspected component. It also supports radiometric image capture, thermal video recording, Wi-Fi live streaming, and data analysis through compatible PC and mobile software.

Features:

• High-Resolution Thermal Imaging: Uses a 640 × 480 infrared detector for detailed temperature visualization.

• Super Resolution: Enhances saved thermal images to 1280 × 960 pixels.

• High Thermal Sensitivity: NETD below 35mK helps reveal subtle temperature differences.

• Wide Temperature Range: Measures temperatures from -20°C to 650°C.

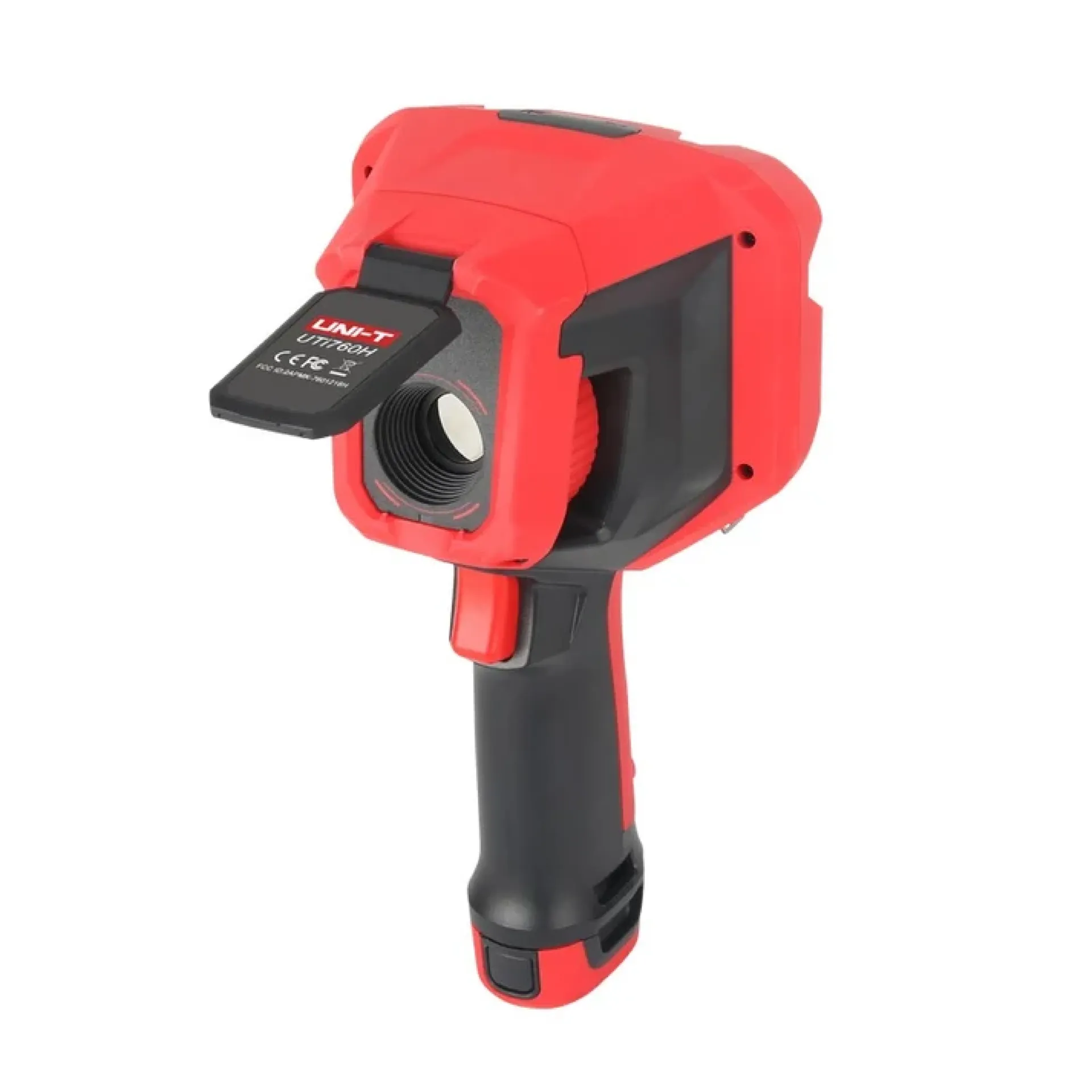

• Manual Focus: Allows focus adjustment for near and distant inspection targets.

• T-Mix Image Fusion: Combines thermal and visible-light images to help locate faults.

• 5MP Visible Camera: Captures conventional images for inspection records.

• Temperature Analysis Tools: Supports up to 16 points, 16 lines, 16 rectangles, and 16 circles.

• High/Low Temperature Alarms: Provides visual and audible alerts when configured thresholds are exceeded.

• Radiometric Video Recording: Supports MP4 and UIR video formats, with UIR retaining temperature data for analysis.

• Wi-Fi Connectivity: Supports wireless streaming and file transfer with compatible software.

• Rugged Construction: IP54 protection and a 2m drop rating support field use.

Specifications:

• Brand: UNI-T

• Model: UTi760H

• Product Type: Professional Enhanced Thermal Imager

• Infrared Resolution: 640 × 480 pixels

• Super Resolution: Up to 1280 × 960 pixels

• Temperature Measurement Range: -20°C to 650°C

• Thermal Sensitivity (NETD): Below 35mK

• Temperature Accuracy: 0°C to 650°C: ±1.5°C or ±1.5% of reading, whichever is greater; -10°C to 0°C: ±2°C or ±2% of reading, whichever is greater

• Infrared Spectral Range: 8–14µm

• Pixel Pitch: 12µm

• Frame Rate: Up to 30Hz

• Lens Focal Length: 18mm

• Field of View: 24° horizontal × 19.3° vertical

• Spatial Resolution (IFOV): 0.67mrad

• Focus Mode: Manual

• Display: 4.3-inch capacitive touchscreen, 800 × 480 pixels

• Visible Camera: 5MP

• Digital Zoom: 1×–6×

• Image Modes: Thermal, visible, T-Mix fusion, and picture-in-picture (PIP)

• Storage: 32GB internal memory plus a 32GB SD card, as specified

• Connectivity: Wi-Fi and USB Type-C

• Battery: Detachable 5200mAh rechargeable lithium-ion battery

• Operating Time: Approximately 4 hours with Wi-Fi disabled

• Protection Rating: IP54

• Drop Resistance: Up to 2m

• Dimensions: Approximately 270 × 130 × 110mm

• Weight: Approximately 750g

• Certifications: CE, FCC, and RoHS

Applications:

• Electrical panel and switchgear inspection.

• Detection of overheated terminals, connectors, and electrical components.

• Preventive maintenance of motors, bearings, and industrial machinery.

• HVAC and refrigeration system inspection.

• Building insulation and thermal-loss assessment.

• Inspection of distribution equipment and power systems.

• Monitoring temperature variations in industrial processes.

• Thermal documentation and maintenance reporting.

• Mechanical and electrical troubleshooting.
