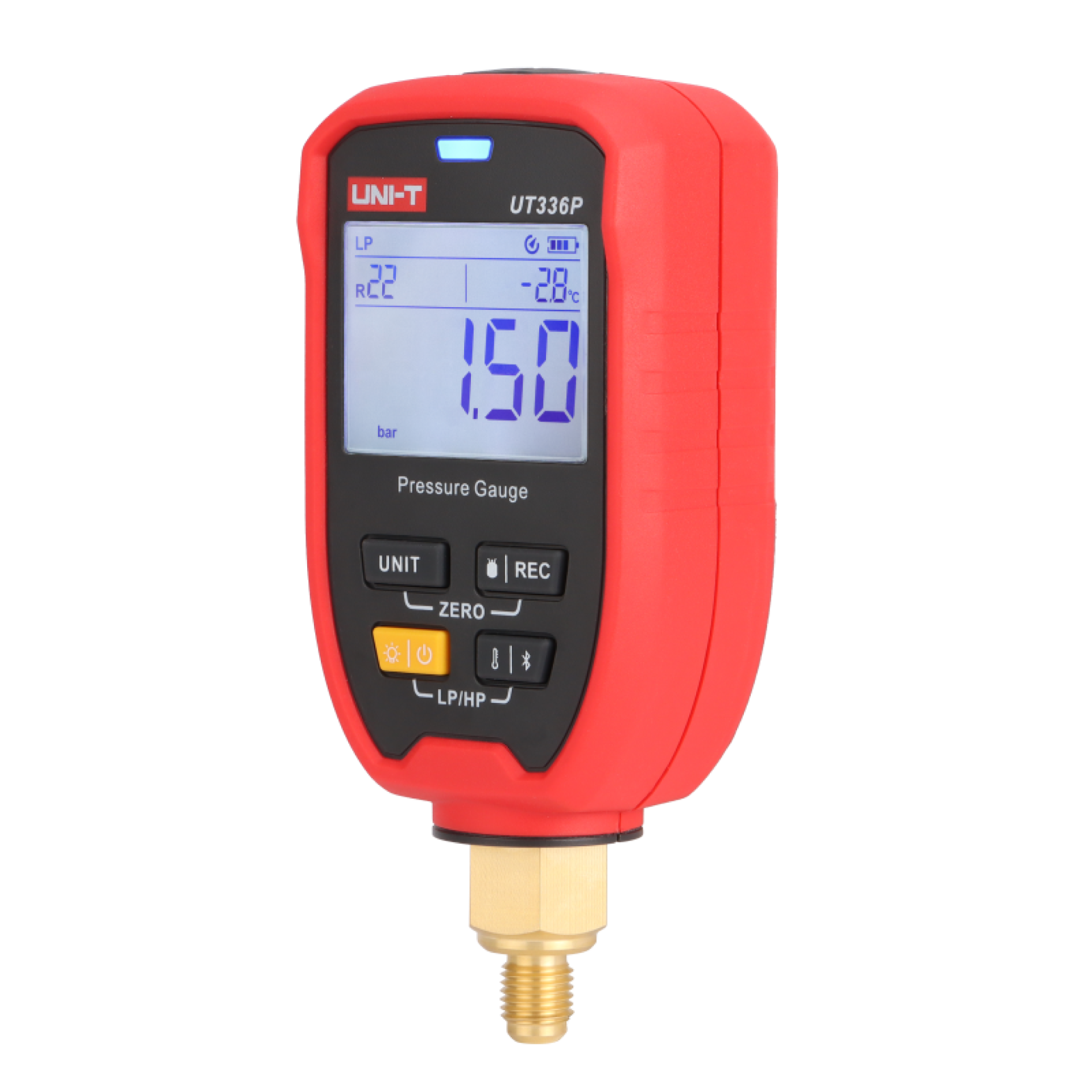

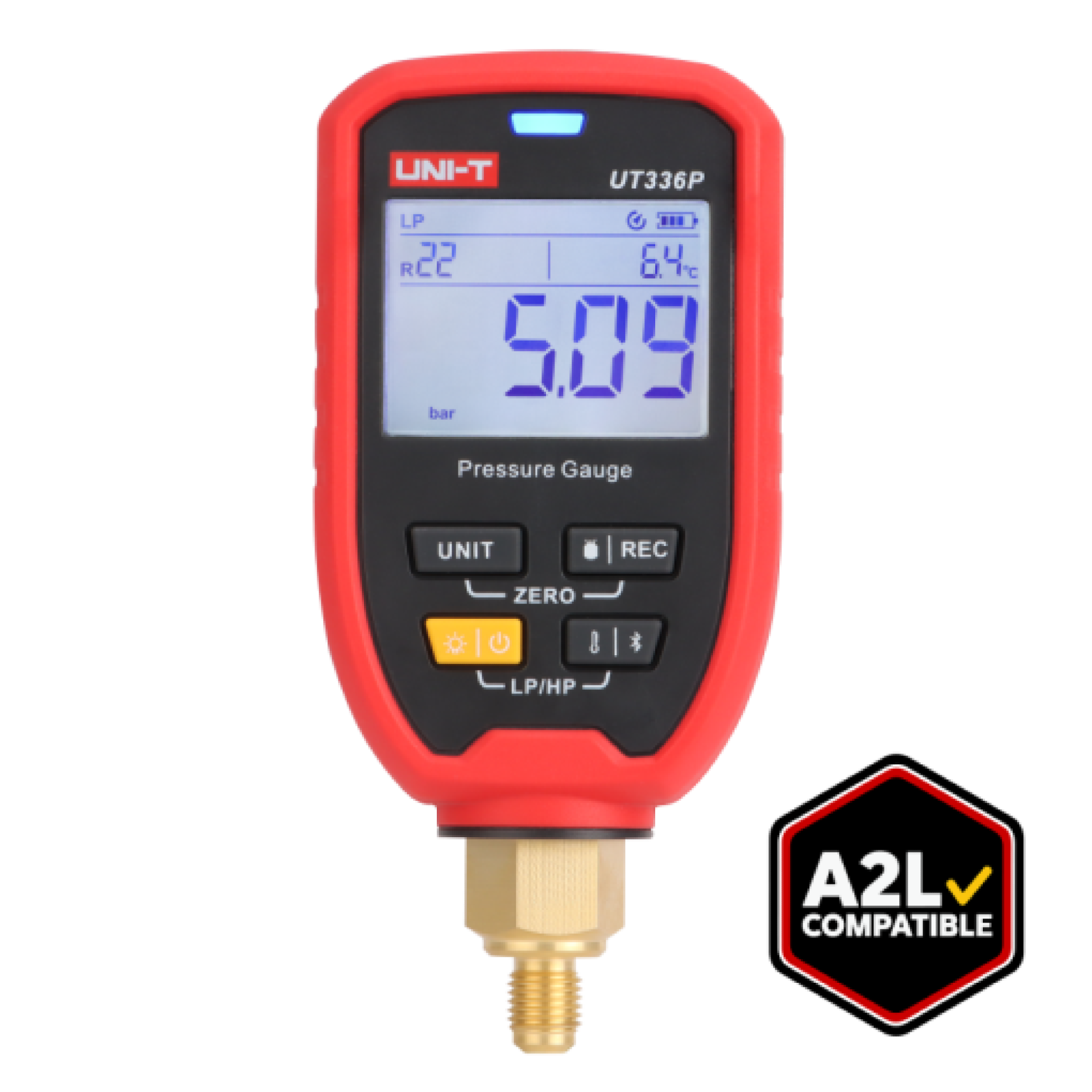

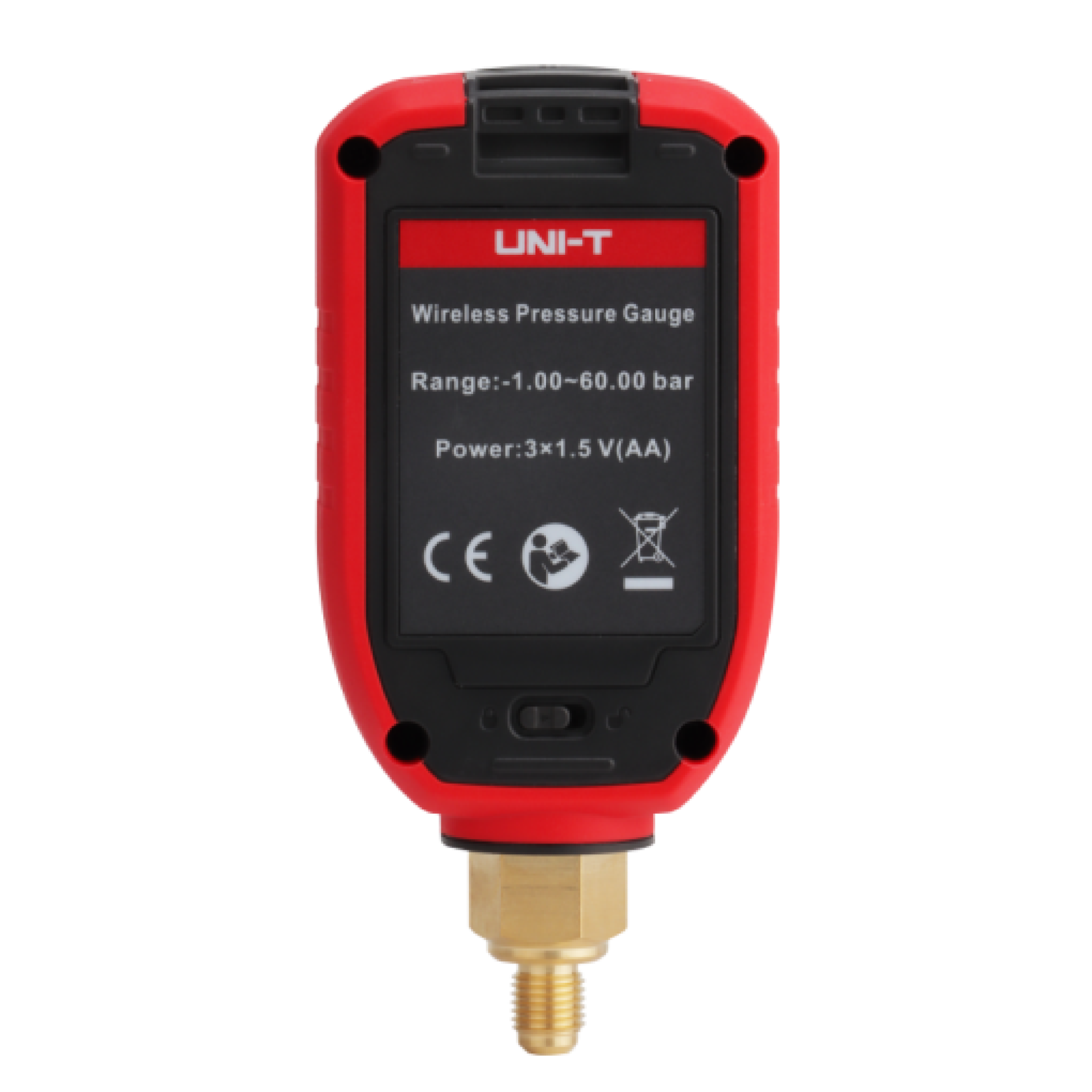

UNI-T UT336P Wireless Digital Pressure Gauge

Features:

• High-Accuracy Pressure Measurement: Measures refrigeration-system pressure with an accuracy of ±0.5% FS.

• Wide Measurement Range: Covers pressures from -1 to 60 bar, supporting a variety of air-conditioning and refrigeration service tasks.

• Wireless Bluetooth Connectivity: Connects to the iENV mobile application for remote monitoring and measurement management.

• Refrigerant Database: Supports 10 preset refrigerant types and up to 94 refrigerant types configurable through the app.

• High and Low Pressure Alarms: Provides configurable pressure alarms and LED indicators to help identify high- and low-pressure conditions.

• Offline Data Logging: Stores up to 8,000 readings and supports exporting measurement records for analysis and reporting.

• Multiple Pressure Units: Displays readings in bar, kg/cm², cmHg, psi, inHg, kPa, and MPa.

• Temperature Clamp Compatibility: Includes a 3.5mm input for the compatible UT-T19 temperature clamp, enabling additional refrigerant-line temperature and system-performance measurements when used with the appropriate accessory.

• Rugged Portable Design: Features an IP54 protection rating, a backlit display, and a built-in hook for convenient positioning during service work.

• Long Battery Life: Operates for up to approximately 100 hours under the manufacturer's stated test conditions.

Specifications:

• Brand: UNI-T

• Model: UT336P

• Product Type: Wireless Digital Pressure Gauge

• Pressure Measurement Range: -1 to 60 bar

• Pressure Resolution: 0.01 bar

• Pressure Accuracy: ±0.5% FS

• Pressure Units: bar, kg/cm², cmHg, psi, inHg, kPa, MPa

• Refrigerant Database: 10 preset types; up to 94 types configurable through the app

• Data Storage: Up to 8,000 readings

• Recording Interval: Adjustable from 1 second to 1 hour

• Wireless Connectivity: Bluetooth

• Mobile Application: iENV

• Temperature Clamp Port: 3.5mm

• Compatible Temperature Clamp: UNI-T UT-T19 (sold separately unless included in a kit)

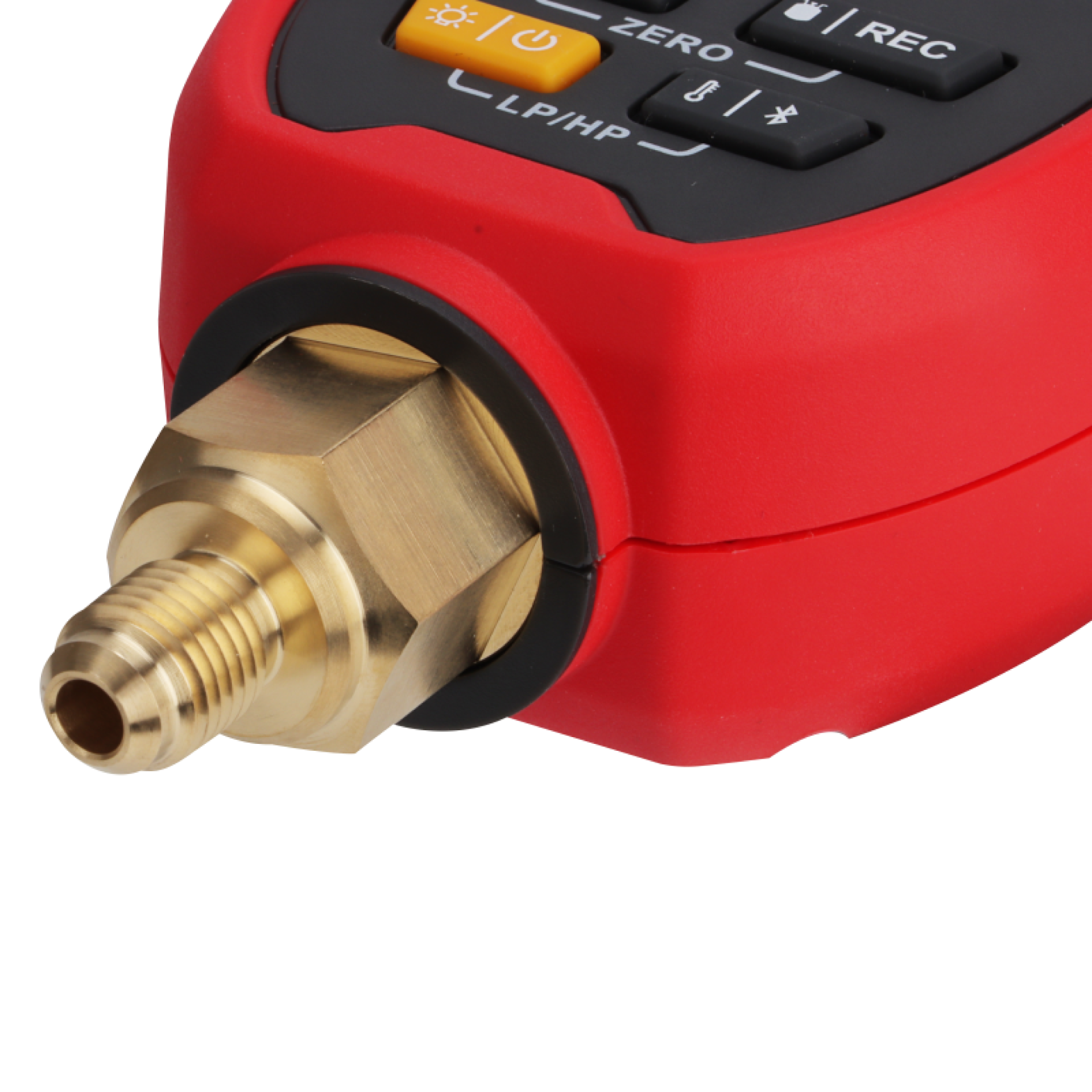

• Pressure Connection: 1/4-inch SAE

• Ingress Protection: IP54

• Power Supply: 3 × AA alkaline batteries

• Battery Life: Approximately 100 hours under specified conditions

• Operating Temperature: -10°C to +50°C

• Storage Temperature: -20°C to +60°C

• Dimensions: 145 × 68 × 39mm

• Net Weight: Approximately 250g, excluding batteries

• Standard Accessories: Pressure gauge, 3 × AA batteries, hand strap, hard cloth bag, and documentation, subject to the supplied package

Applications:

• Air-conditioning installation and maintenance

• Refrigeration-system pressure monitoring

• Heat pump installation and servicing

• HVAC/R system troubleshooting

• Refrigerant pressure diagnostics

• High- and low-side pressure checks

• Refrigeration system commissioning

• Long-term pressure data logging

• Refrigerant system performance analysis

• Professional HVAC service and repair
