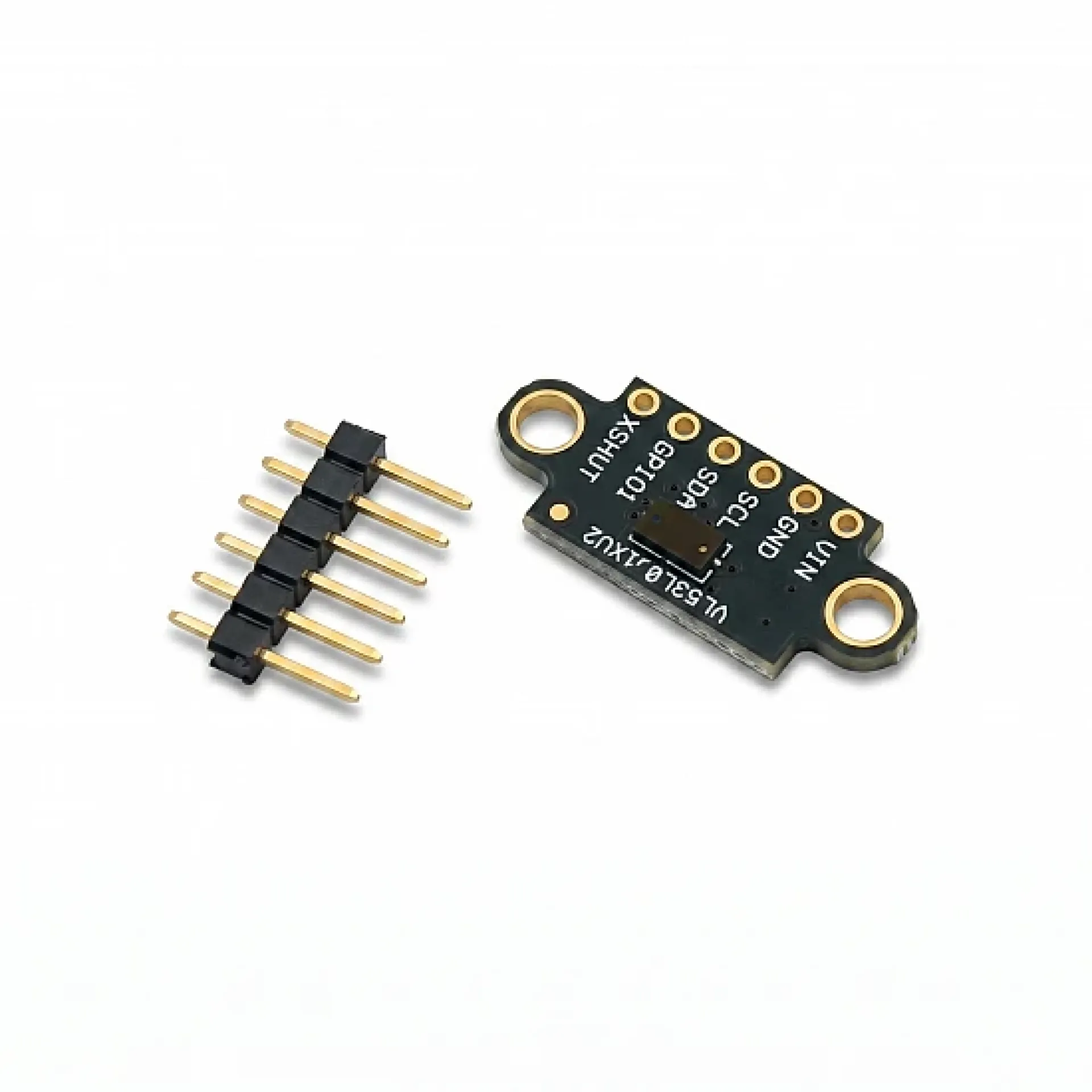

VL53L0X/VL53L1X V2 Time-of-Flight Laser Distance Sensor Module

Features:

• Time-of-Flight Technology: Measures distance by calculating the travel time of emitted infrared laser light reflected from an object.

• Non-Contact Measurement: Detects object distance without physical contact, making it suitable for automated sensing applications.

• 940nm Infrared Emitter: Uses an infrared VCSEL light source that is invisible to the human eye.

• Digital I²C Interface: Transfers distance measurements to compatible microcontrollers using the I²C communication protocol.

• Compact Sensor Design: Suitable for embedded systems, robotics, and electronic projects with limited installation space.

• Microcontroller Compatibility: Can interface with Arduino, ESP32, STM32, Raspberry Pi, and other supported platforms.

• Configurable Measurement: Supported sensor versions provide configurable measurement timing and ranging modes.

• Low-Power Operation: Suitable for portable and battery-powered projects when configured within the sensor's power requirements.

• Integrated Optical System: Combines laser emission and optical reception for compact distance-sensing applications.

Specifications:

• Product Type: Time-of-Flight (ToF) laser ranging sensor module

• Listed Model: VL53L0X/VL53L1X V2

• Sensing Technology: Infrared laser Time-of-Flight

• Laser Wavelength: 940nm

• Communication Interface: I²C

• Default I²C Address: 0x29

• Maximum Measurement Range: Up to 2m for VL53L0X or up to 4m for VL53L1X under suitable conditions

• Maximum Ranging Frequency: Up to 50Hz for VL53L1X; the achievable rate depends on the selected measurement configuration

• Field of View: Approximately 25° for VL53L0X or 27° for VL53L1X

• Operating Voltage: Depends on the breakout board; check whether onboard voltage regulation and logic-level shifting are included

• Output: Digital distance data

• Shutdown Control: Supported sensor versions provide an XSHUT control pin

• Interrupt Output: Available on supported board versions

• Compatibility: Arduino, ESP32, STM32, Raspberry Pi, and compatible I²C systems

• Module Dimensions: Depend on the supplied V2 breakout-board design

Applications:

• Robot obstacle detection and avoidance

• Autonomous mobile robots

• Object proximity detection

• Automatic doors and presence detection

• Distance measurement and positioning

• Smart home automation

• Gesture-related sensing projects

• Inventory and object detection systems

• Embedded systems and IoT prototypes

• Engineering education and electronics development
