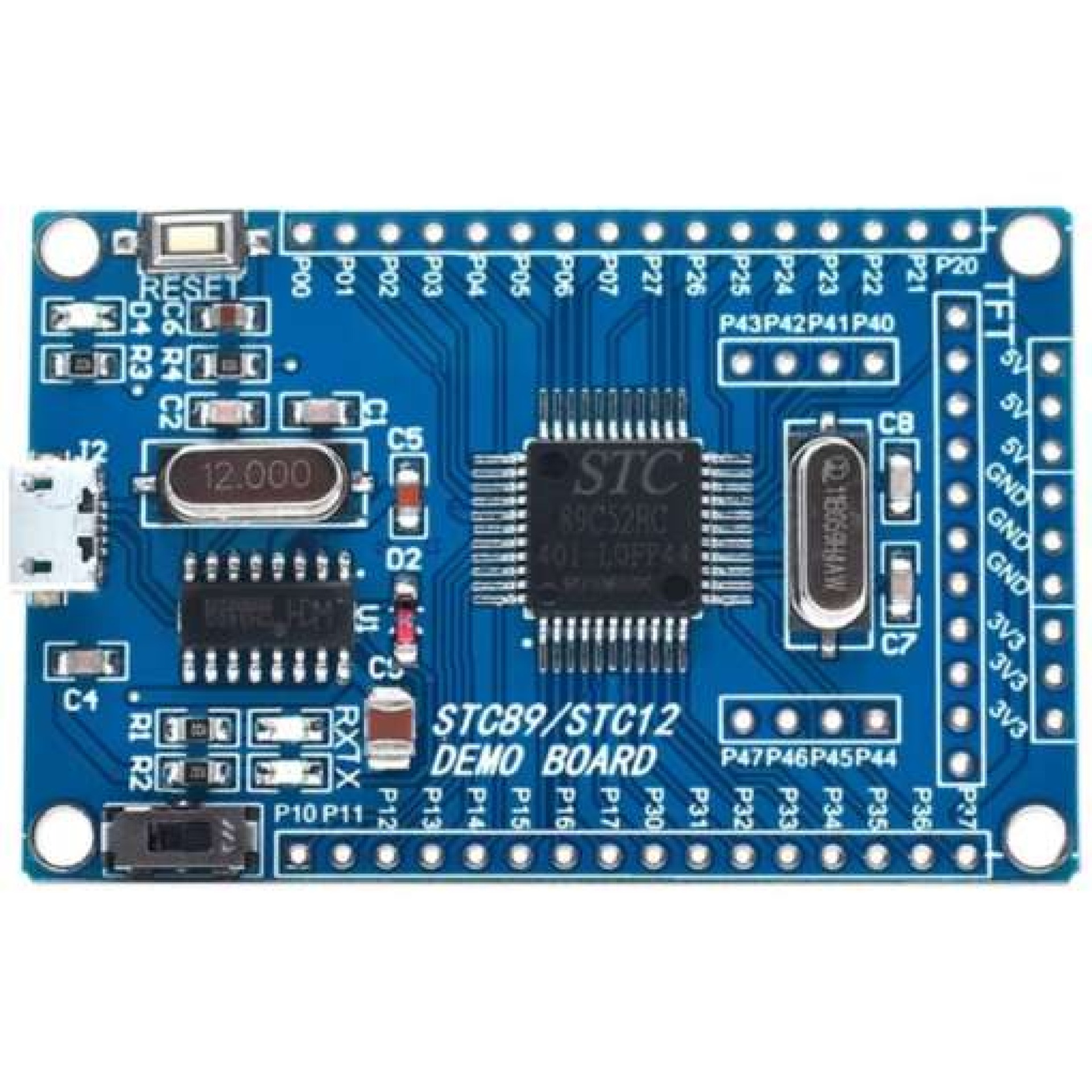

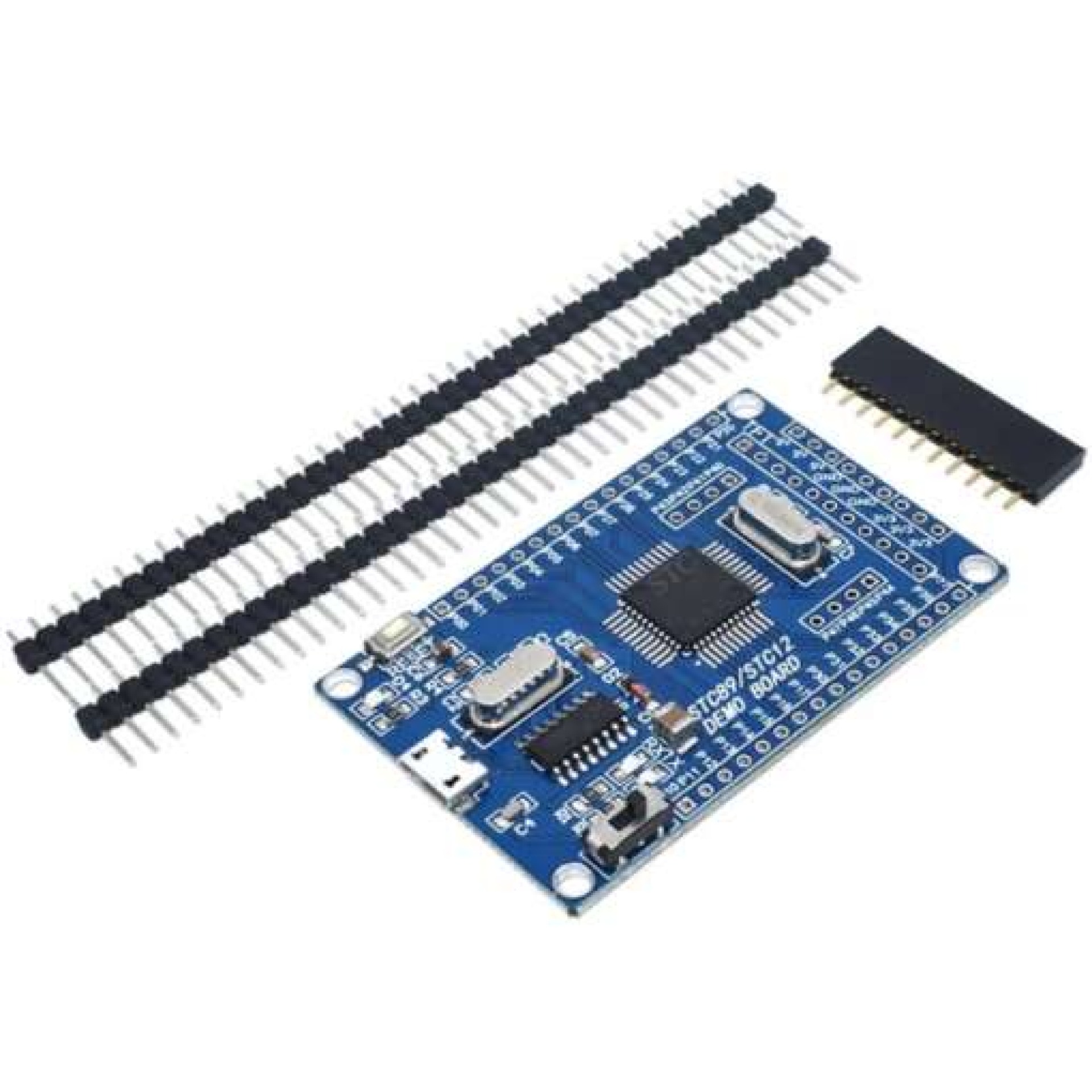

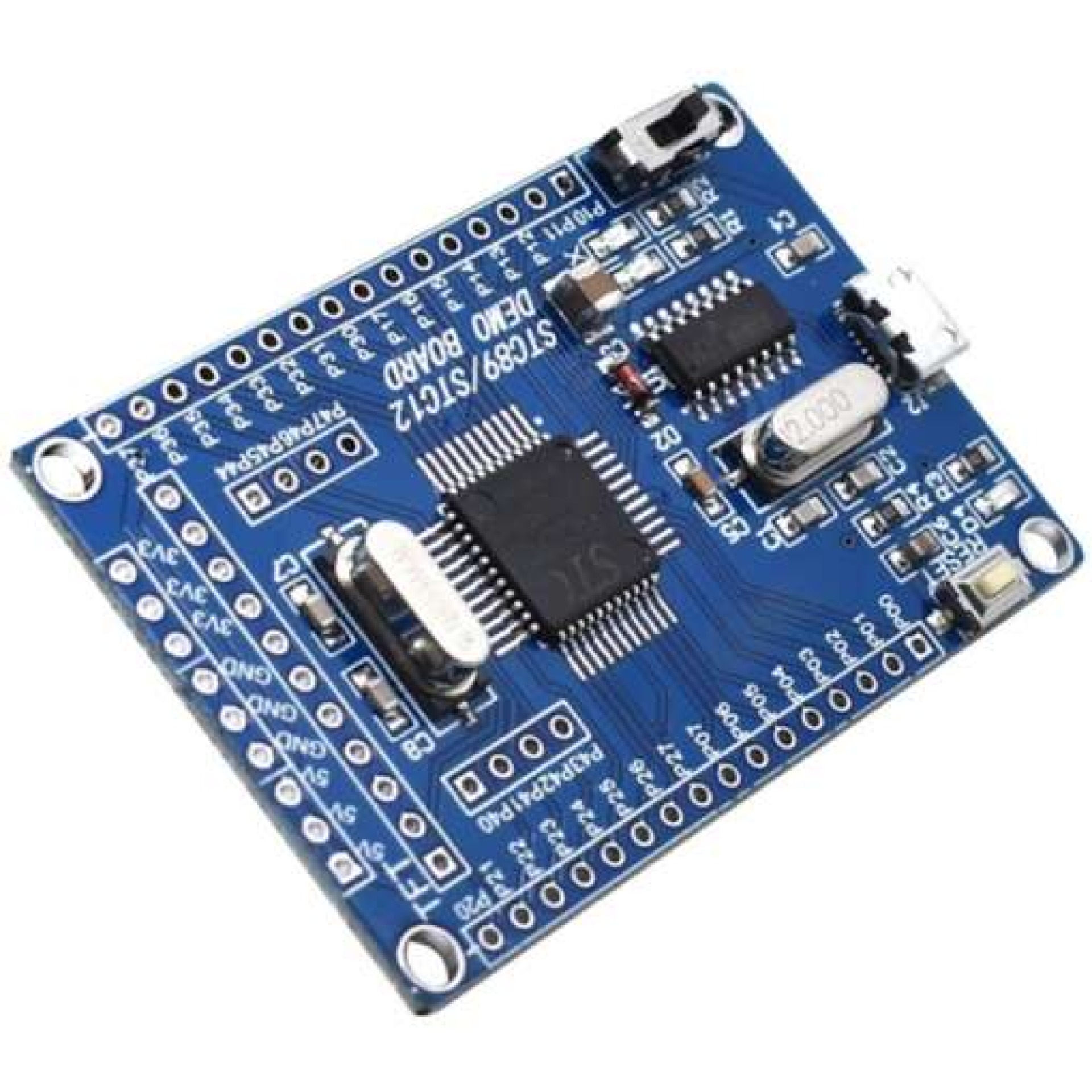

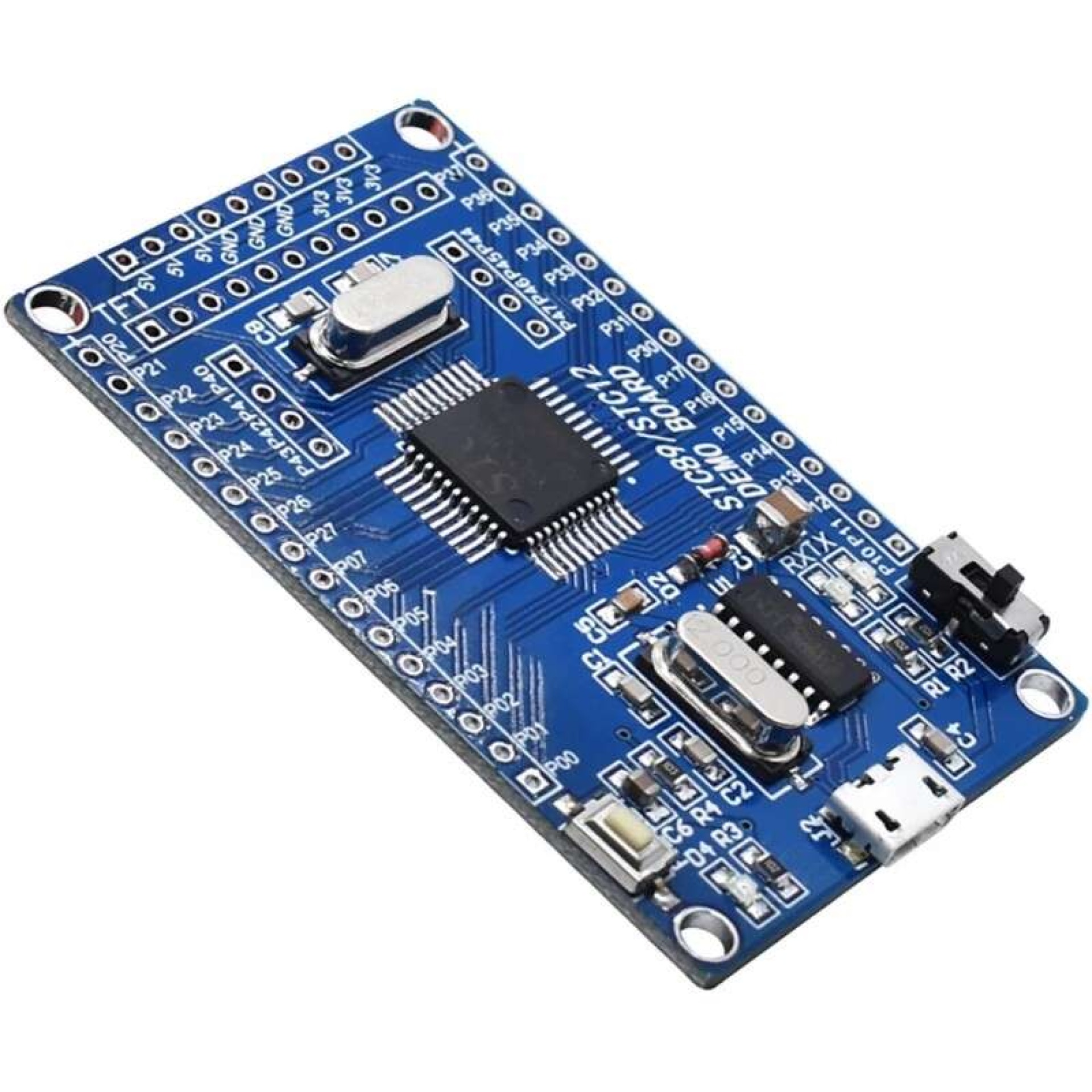

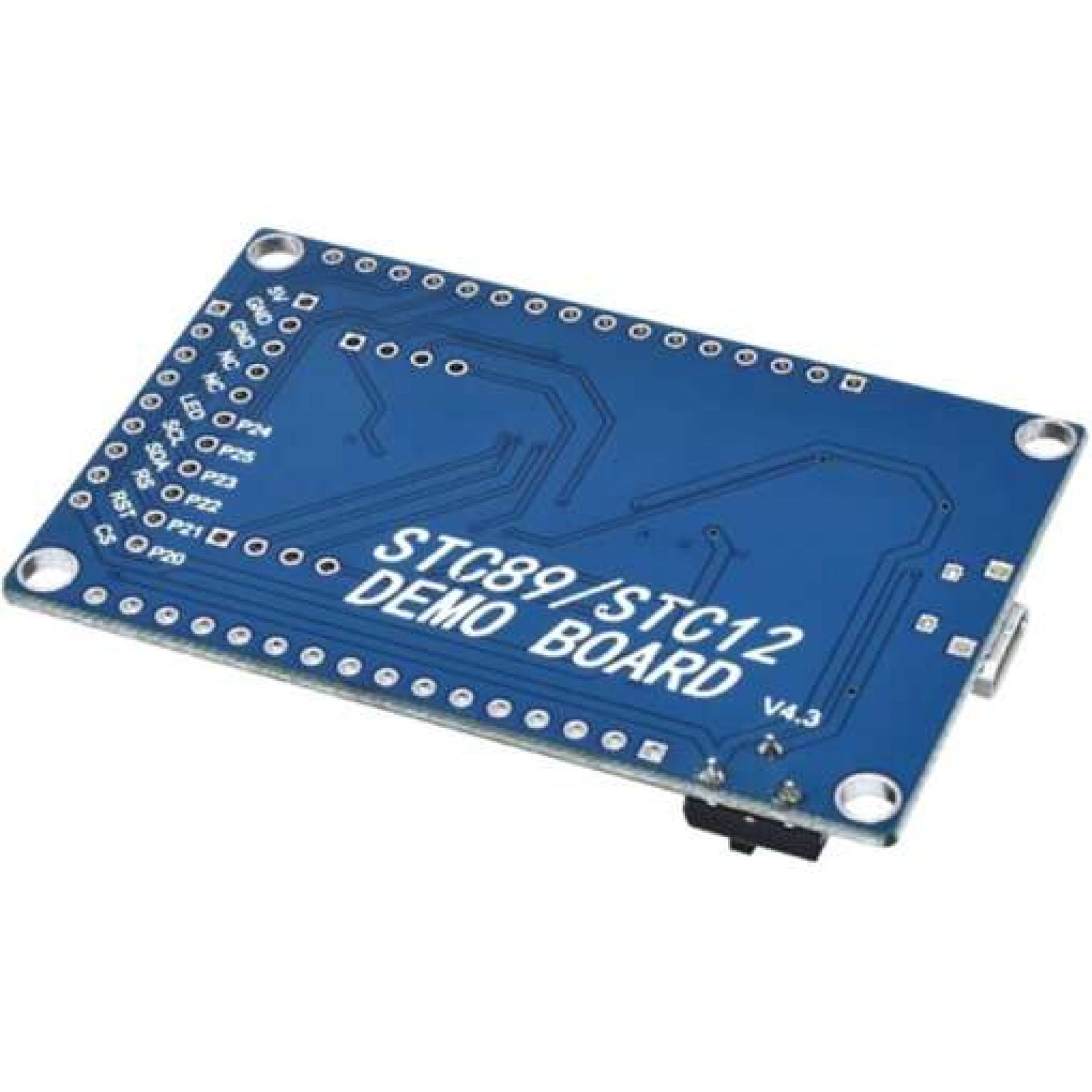

STC89C52 Microcontroller Development Board

Product Description

The STC89C52 Microcontroller Development Board is an educational and embedded-systems development platform based on the STC89C52 8051-compatible microcontroller. It provides an accessible environment for learning microcontroller programming, digital I/O control, serial communication, timers, interrupts, and interfacing with external electronic circuits. The board is suitable for students, electronics hobbyists, and developers working with traditional 8051-based embedded systems.

At the heart of the board is the STC89C52RC, an enhanced 80C51-family microcontroller featuring 8KB of on-chip Flash program memory and 512 bytes of RAM. The MCU supports both 6-clock and 12-clock machine-cycle operation, with an operating frequency of up to 48MHz in 12T mode or 24MHz in 6T mode according to the manufacturer. It also integrates three 16-bit timer/counters, UART communication, interrupt control, watchdog functionality, and multiple programmable I/O ports.

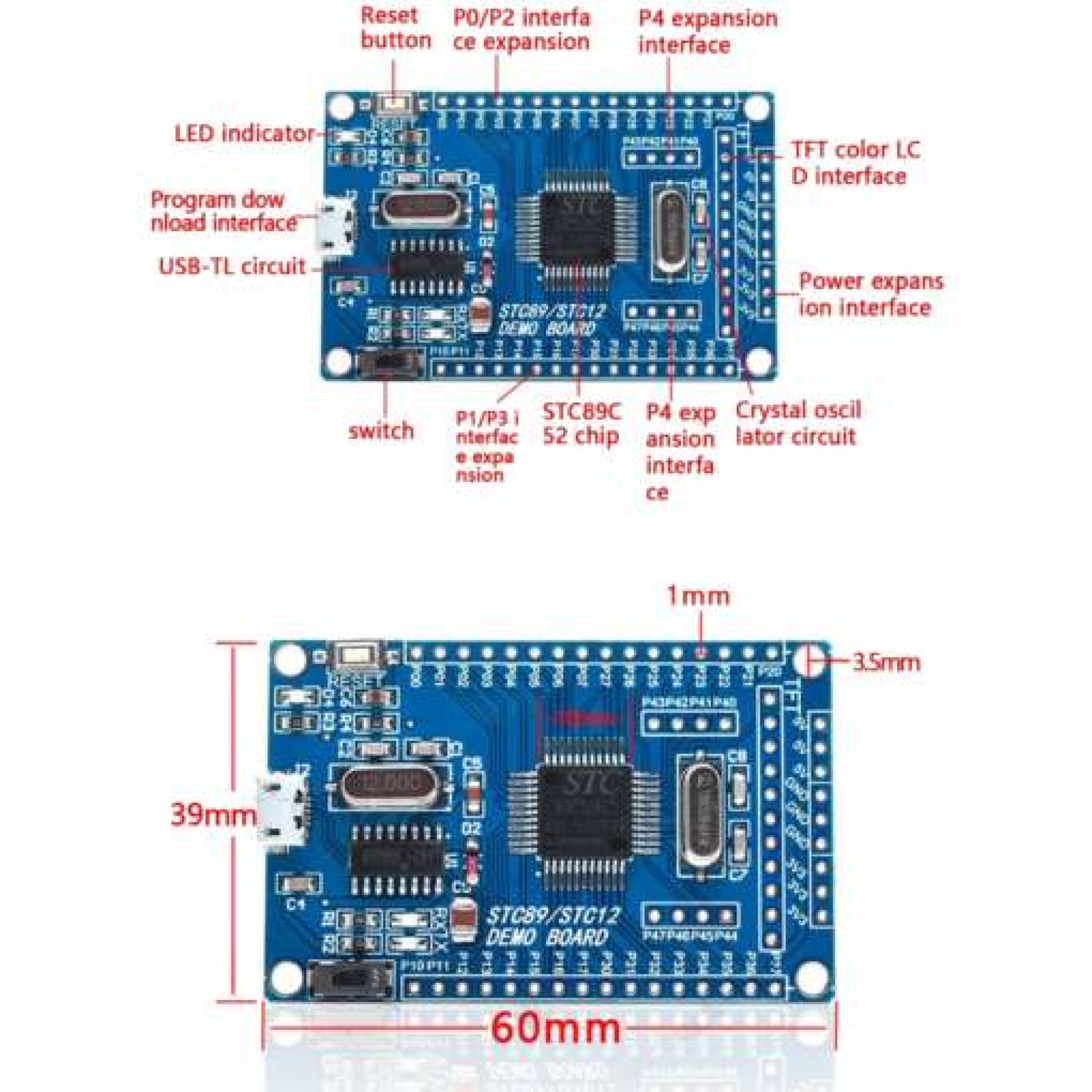

The development board is designed to make the microcontroller's I/O resources accessible for experimentation and circuit development. Depending on the board version, onboard interfaces can include LEDs, push buttons, displays, a buzzer, infrared receiver, temperature-sensor interface, motor interfaces, and LCD connectors. These peripherals allow users to develop and test embedded applications without building every supporting circuit separately.

Programming can be performed through an onboard or external serial/USB programming interface, depending on the specific board version. STC89C52RC supports ISP/IAP programming, allowing firmware to be downloaded without requiring a conventional external programmer in compatible board implementations. STC also provides dedicated ISP programming software for its microcontrollers.

The board is particularly useful for studying the architecture and programming methods of the classic 8051/MCS-51 platform. Users can work with C or assembly-language firmware while experimenting with GPIO control, LED displays, keypads, timers, counters, UART communication, interrupts, sensor inputs, and simple actuator control.

With its combination of an established 8051-compatible MCU and accessible peripheral interfaces, the STC89C52 development platform is well suited for laboratory exercises, embedded-systems training, university projects, prototype development, and applications where a simple 8-bit microcontroller is sufficient.

Features

• Based on STC89C52RC 8051-compatible MCU

• 8KB on-chip Flash program memory

• 512 bytes on-chip RAM

• Up to 48MHz operation in 12T mode

• 6T/12T machine-cycle operation

• Three 16-bit timer/counters

• Integrated UART serial interface

• ISP/IAP in-system programming support

• Multiple programmable digital I/O ports

• Watchdog timer and interrupt controller

• Suitable for embedded-systems education and prototyping

• Onboard peripheral interfaces for practical experiments*

Specifications

*Onboard peripherals and their exact configuration vary between STC89C52 development-board versions. The specifications above should be checked against the physical board supplied.

Applications

• 8051 microcontroller programming

• Embedded-systems education

• University electronics laboratories

• Digital I/O experiments

• LED and 7-segment display projects

• Keypad and button interfacing

• UART serial communication

• Timer and counter applications

• Sensor interfacing

• Motor and relay control

• Infrared remote-control projects

• Embedded-system prototyping
