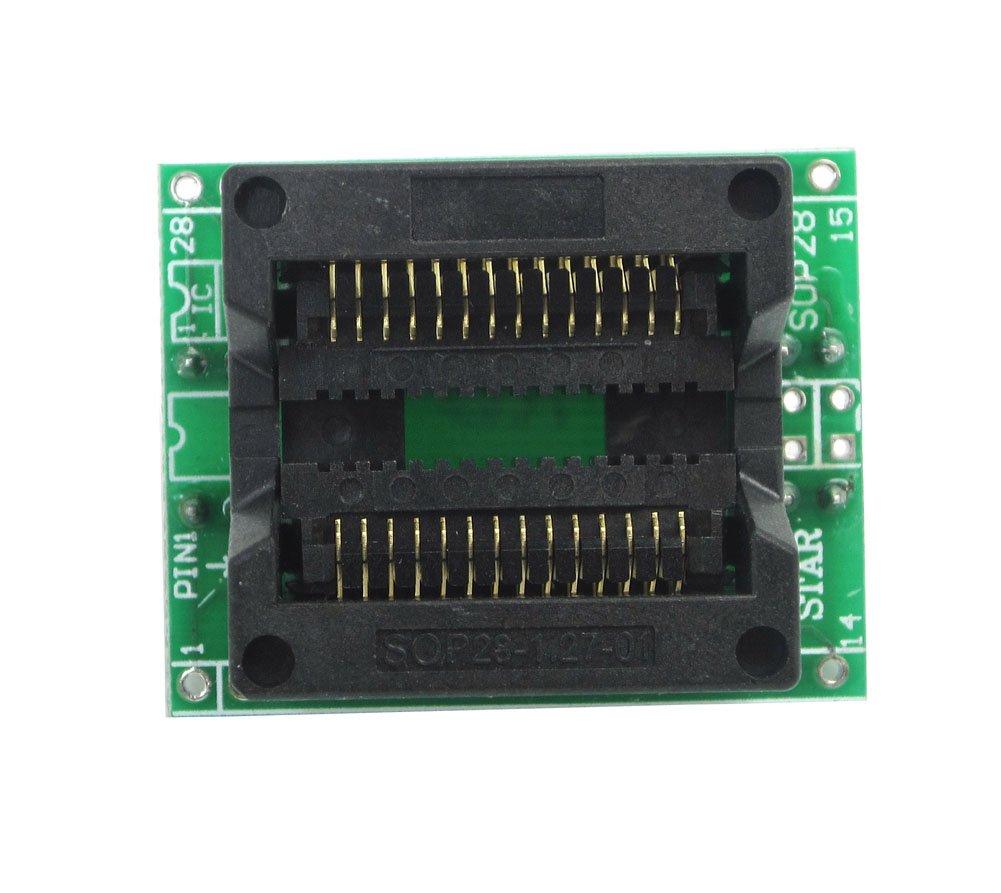

OTS-28-1.27-04 IC Programmer adapter Socket

Electra Store SKU: MP-26660

200.00 EGP

In Stock

Quantity

Share to

Overview

The OTS-28-1.27-04 is a precision IC programmer adapter socket designed for 28-pin SMD ICs with 1.27mm pitch, enabling easy programming, testing, and debugging of surface-mount chips without soldering. Ideal for QFP, TQFP, and SOP packages in electronics repair and development.

Description

Key Features:

✔ 1.27mm Pitch Compatibility – Fits 28-pin SMD ICs (QFP, TQFP, SOP). ✔ Spring-Loaded Contacts – Securely grips IC pins without damage. ✔ Gold-Plated Pins – Ensures low resistance and reliable connections. ✔ ZIF (Zero Insertion Force) Design – Easy IC loading/unloading. ✔ Wide Voltage Support – Works with 3.3V and 5V logic devices. ✔ Compact & Durable – Reinforced plastic body with metal latch.

Applications:

IC Programming – Flash microcontrollers (ATMega, STM32, PIC).
PCB Debugging – Test SMD chips without desoldering.
Prototyping – Quickly swap ICs during development.
Repair Shops – Diagnose faulty surface-mount components.

Compatible IC Packages:

QFP-28, TQFP-28, SOP-28 (1.27mm pin spacing).
Common Chips:
- STM32F1/F4 (TQFP-28).
- ATMega328P (TQFP-32, with adapter).
- PIC MCUs (QFP variants).

Technical Specifications:

Pin Count: 28 (1.27mm pitch).
Contact Material: Beryllium copper (gold-plated).
Operating Voltage: Up to 5V (signal lines).
Dimensions: ~30mm × 15mm × 10mm.

Package Includes:

1x OTS-28-1.27-04 IC Adapter Socket.

Why Choose This Adapter?

✅ Saves Time – No soldering/desoldering for testing. ✅ ESD-Safe – Protects sensitive ICs during handling. ✅ Reusable – Durable construction for long-term use.
