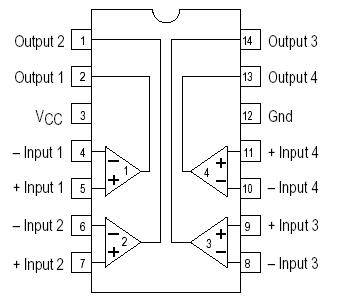

LM339 DIP SINGLE SUPPLY QUAD COMPARATOR

🔧 Key Features:

• Type: Quad voltage comparator

• Operating Voltage: 2V to 36V (single supply)

• Open-Collector Outputs: Allows wired-AND connections and level shifting

• Low Power Consumption: Suitable for battery-powered and low-power devices

• Response Time: Fast switching suitable for timing and threshold detection

• Input Offset Voltage: Low input offset voltage for accurate comparisons

• Package: 14-pin DIP (Dual In-line Package)

• Operating Temperature Range: -40°C to +85°C (industrial grade)

⚙️ Typical Applications:

• Voltage level detection

• Zero-crossing detectors

• Oscillators and waveform generators

• Analog-to-digital interface

• Overvoltage and undervoltage protection

• Sensor signal conditioning

📦 Package Includes:

• 1 x LM339 Single Supply Quad Comparator IC – DIP-14 Package

✅ Why Choose the LM339?

The LM339 offers precise and reliable voltage comparison in a compact quad package. Its single-supply operation and open-collector outputs make it highly flexible for a wide variety of analog and digital interfacing applications.
