FT232Rl FTDI

Name: FT232Rl FTDI
Brand: Electra Store
SKU: MD-22508
Price: 105.00 EGP
Availability: OutOfStock

Electra Store SKU: MD-22508

105.00 EGP

Out of Stock

Share to

Categories: Converters

Overview

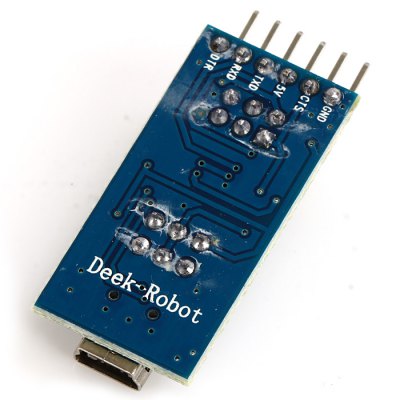

FT232Rl FTDI

Description

Support 3.3V, 5V
chipset FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin Definition: DTR,RXD,TXD,VCC,CTS,GND
Pitch: 2.54mm
Size: 36mm(L)*17.5mm(W)

The FTDI board is a USB to Serial (TTL level) converter which allows for a simple way to connect TTL interface devices to USB. The VCC pins of this FTDI cable are configured to operate at 5V or 3.3V I/O just by changing the yellow jumper position. This FTDI board is based on FTDI original chip FT232RL (datasheet here) This board has TX and RX LEDs that allow you to actually see serial traffic on the LEDs to verify if the board is working package included : 1 x FT232Rl FTDI
