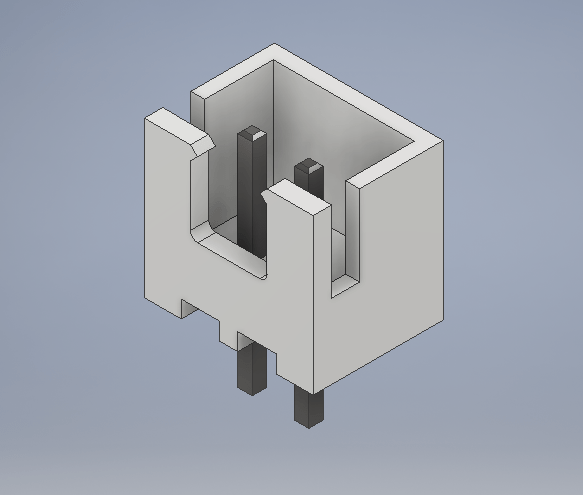

JST XH Data Terminal Straight PCB Solder Male Connector 2 pin

🔑 Key Features:

✔ JST XH Standard – 2.54mm pitch for compatibility with XH sockets/cables ✔ 2-Pin Male Header – Straight PCB solder type (through-hole mounting) ✔ Tin-Plated Brass Contacts – Low resistance (≤20mΩ) and corrosion-resistant ✔ PA66 Housing (UL94 V-0) – Flame-retardant (-40°C to +105°C) ✔ Polarized Design – Keyed slot prevents incorrect mating ✔ Compact Size – Minimal PCB footprint (5.08mm × 6.5mm)

📌 Applications:

• Power Connections – Battery/DC input terminals

• Sensor Interfaces – Temperature, proximity sensors

• LED Lighting – Single-color strip power inputs

• DIY Electronics – Arduino/Raspberry Pi expansions

• Drone Electronics – ESC signal connections

📦 Package Includes:

• 1 × JST XH 2-Pin Male Connector (Straight PCB Solder Type)

⚙ Technical Specifications:

🔧 Soldering Guide:

1. PCB Layout:

   • Pad diameter: ≥1.5mm

   • Hole size: 0.7–0.9mm

2. Process:

   • Soldering iron: 300–350°C

   • Duration: ≤3 seconds per pin

Compliance: RoHS & REACH compliant

Keywords for SEO: *JST XH 2-pin header, 2.54mm PCB connector, power terminal block, polarized solder connector*

For custom pin lengths or tape-and-reel packaging, contact us!
