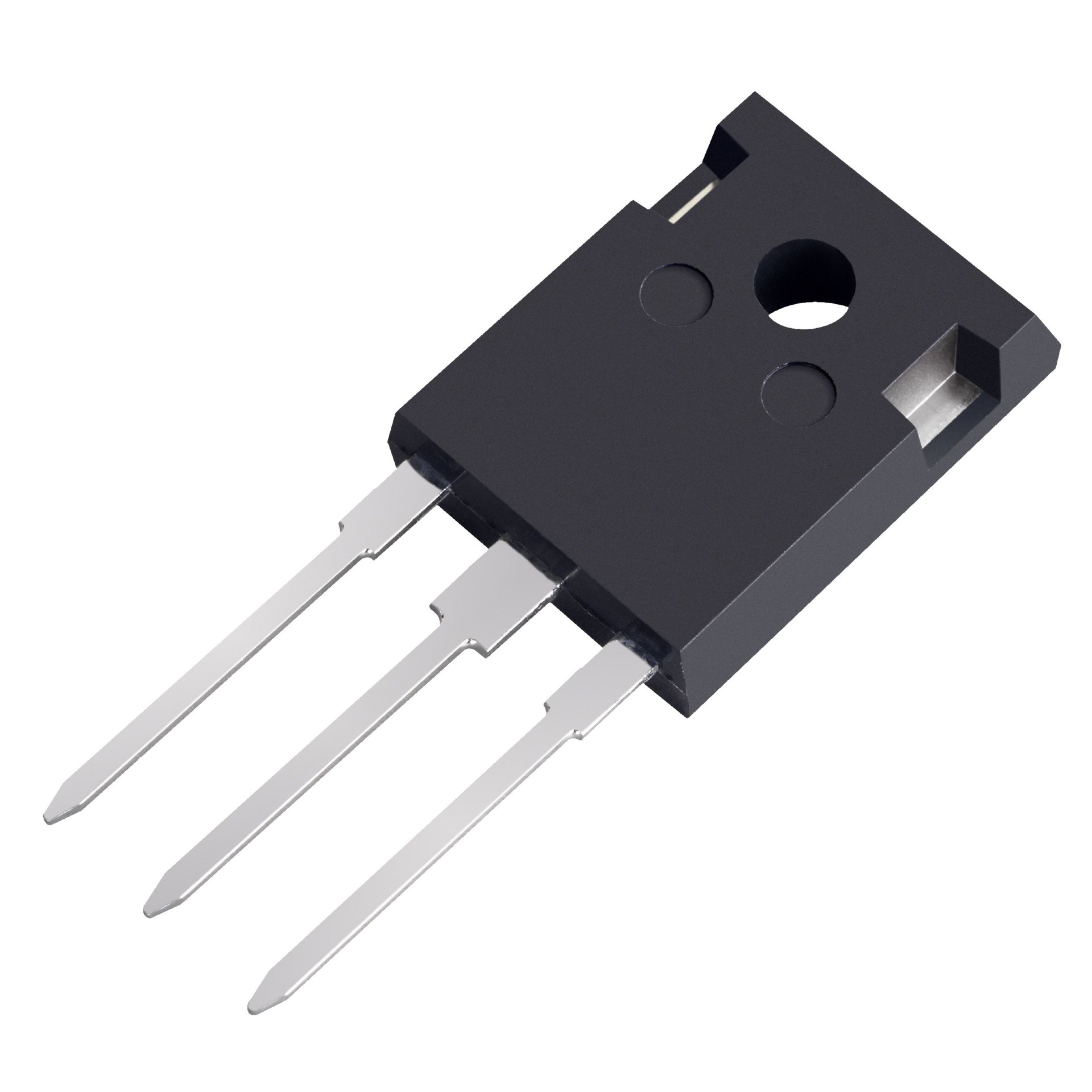

FGH40N60 IGBT Transistors 600V, 80A Field Stop IGBT TO-247

FGH40N60 IGBT Transistor 600V 80A Field Stop IGBT TO-247

The FGH40N60 IGBT Transistor 600V 80A is a high-performance power semiconductor. It uses advanced Field Stop IGBT technology. This device offers excellent switching efficiency and reduced conduction losses. It is perfect for high-power and high-frequency switching circuits.

This transistor handles up to 600V and 80A continuously. It features low saturation voltage and fast switching speeds. The TO-247 package ensures robust thermal performance. It is designed for demanding industrial applications.

The FGH40N60 IGBT Transistor 600V 80A excels in modern power electronics. It combines high voltage capability with low on-state voltage drop. This reduces heat generation significantly. The Field Stop structure minimizes tail current during turn-off. This leads to faster switching and lower energy loss. Engineers can design more compact systems with this part. It operates reliably at high frequencies up to 20 kHz. The device also offers excellent short-circuit robustness. This makes it suitable for harsh environments. The TO-247 package provides easy mounting and strong thermal contact. It can handle high surge currents without failure. This transistor is a cost-effective solution for many power designs.

Key Features

• Collector-emitter voltage rating of 600V for high-voltage circuits.
• Continuous current rating of 80A for heavy loads.
• Field Stop technology for low conduction losses.
• Fast switching speeds improve efficiency in inverters.
• TO-247 package offers excellent heat dissipation.
• RoHS compliant and lead-free for environmental safety.

What's Included

• One FGH40N60 IGBT Transistor 600V 80A in TO-247 package.
• Factory-sealed anti-static packaging for safe handling.
• Datasheet with full electrical specifications available online.
• Electra Store quality guarantee and support.

Use Cases

This IGBT is ideal for power inverters, motor drives, and welding machines. It also works well in UPS systems and renewable energy converters. Engineers and hobbyists choose it for reliable performance. Typical buyers include industrial designers and repair technicians. They use it in solar inverters and electric vehicle chargers. The FGH40N60 IGBT Transistor 600V 80A also fits in induction heating systems. It is perfect for building high-efficiency power supplies. Students and researchers use it in power electronics labs. This part is a top choice for upgrading older designs. It replaces many standard IGBTs with better performance.

Upgrade your project with the FGH40N60 IGBT Transistor 600V 80A. It delivers high efficiency and durability. Order now from Electra Store for fast shipping. Stock is limited for this popular component. Secure your FGH40N60 IGBT Transistor 600V 80A today. Experience the reliability of Electra Store products. Click add to cart and complete your order now. Your next power project starts here.
