DHT22 digital temperature and humidity sensor AM2302 replaces SHT11 SHT15

Electra Store SKU: CM-28515

93.50 EGP

In Stock

Quantity

Share to

DHT22 Digital Temperature and Humidity Sensor AM2302. This is the most commonly used digital temperature and humidity sensor.

Description

The DHT22 is an accurate digital temperature and humidity sensor.
It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and outputs a digital signal on the data pin (no analog input pins needed).
It's fairly simple to use a sensor that can deliver new data once every 2 seconds.

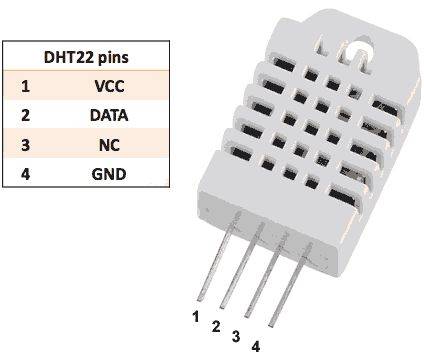

Simply connect the first pin on the left to 3-5V power, the second pin to your data input pin, and the rightmost pin to ground.
Excellent long-term stability
All calibration, digital output
Completely interchangeable
Long distance signal transmission
DHT22 includes a capacitive moisture sensor and a NTC temperature measuring element which is connected to a high-performance 8-bit microcontroller, resulting an excellent quality, super fast response time, strong anti-interference ability and extremely cost-efficient.
