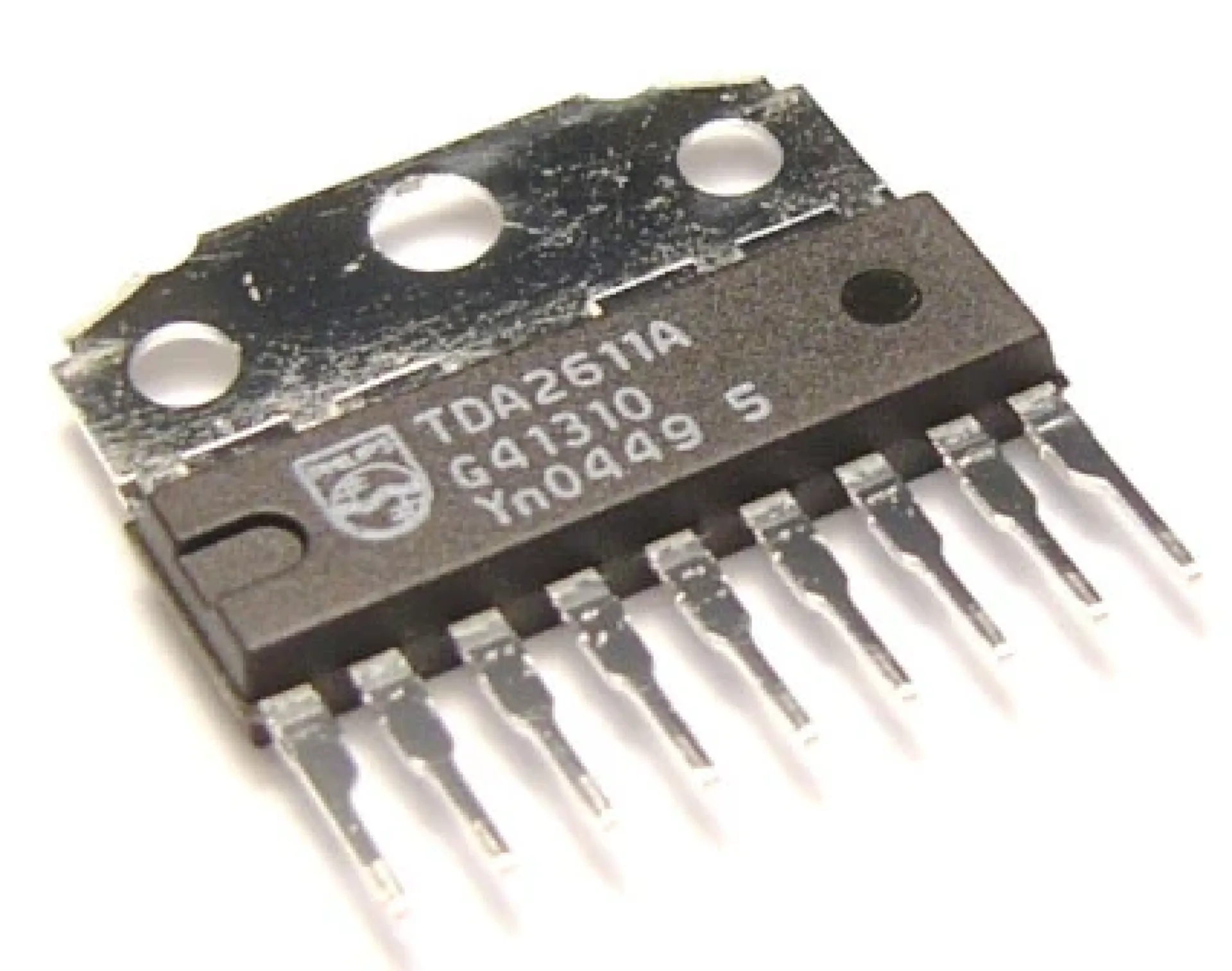

Audio 5Watt Power Amplifier IC TDA2611A

The Audio 5Watt Power Amplifier IC TDA2611A is a reliable monolithic audio amplifier chip designed for high-quality sound amplification in compact electronic systems. It is widely used in radios, televisions, small speaker systems, and DIY audio amplifier projects due to its simple circuit design and stable audio performance.

This IC delivers up to 5 watts of output power, providing clear and balanced sound with low distortion. It is designed for single-supply operation, making it easy to integrate into low-cost audio circuits without complex power requirements. The TDA2611A is known for its efficiency, thermal stability, and consistent audio output quality.

Built with internal protection features, the IC includes thermal shutdown and short-circuit protection, ensuring safe operation under different load conditions. This makes it highly reliable for long-term use in consumer electronics and hobby projects.

Its compact package and minimal external component requirement make it an excellent choice for engineers, students, and electronics hobbyists who want to design simple yet effective audio amplifier circuits.

Features:

• 5W audio output power capability

• Low distortion and clear sound quality

• Single-supply operation design

• Built-in thermal shutdown protection

• Short-circuit protection for safety

• Easy circuit integration

• Compact IC package

• Suitable for DIY and commercial use

Specifications:

• Product Type: Audio Power Amplifier IC

• Model: TDA2611A

• Output Power: 5W (typical)

• Supply Voltage: Single supply (approx. 8V–18V range)

• Speaker Load: 4Ω to 8Ω

• Protection: Thermal and short-circuit protection

• Package Type: DIP / through-hole (varies)

• Technology: Monolithic bipolar IC

Applications:

• TV audio amplifier circuits

• Radio and multimedia devices

• Small speaker systems

• DIY audio amplifier projects

• Educational electronics experiments

• Portable sound systems

• Audio repair and replacement boards
