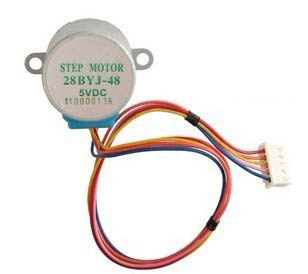

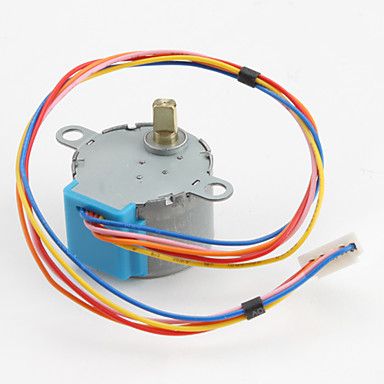

28BYJ-48 Stepper Motor 5VDC
Electra Store
SKU: MO-22656
75.00 EGP
In Stock
1
Categories: Stepper Motors
Overview
Mainly used in Air Conditioner Louver , Small Cooling/Heating Fan etc.
Description
Description
Rated Voltage: 5VDC
Number of Pole: 4
Speed Variation Ratio :1/64
Stride Angle: 5.625° /64
DC resistance: 200Ω±7%(25℃)
Idle In-traction Frequency: >600Hz
Idle Out-traction Frequency: >1000Hz
In-traction Torque:>34.3mN.m(120Hz)
Self-positioning Tor: >34.3mN.m
Insulated resistance: >10MΩ(500V)
Insulated electricity power: 600VAC/1mA/1s
Insulation grade: A
Rise in Temperature: <40K(120Hz)
Noise: <40dB(120Hz,No load,10cm)
